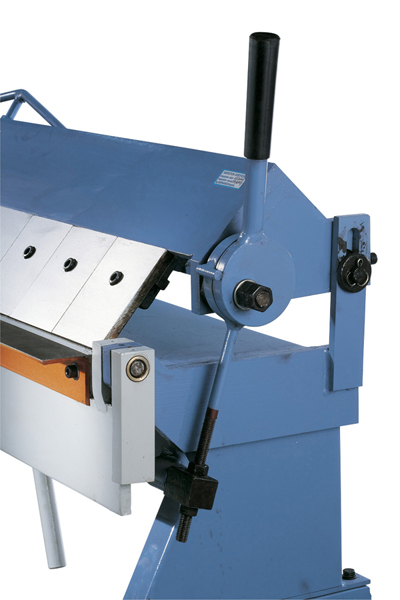

Bernardo SB 915 S Swivel bending machine
Properties Bernardo SB 915 S Swivel bending machine
- Manual bending machine for standard tasks
- Pivoting movement of the bending beam via bow handle
- Upper beam rail with point angle 45 °
- Inexpensive entry-level model for the craftsman
- User-friendly upper beam infeed via eccentric

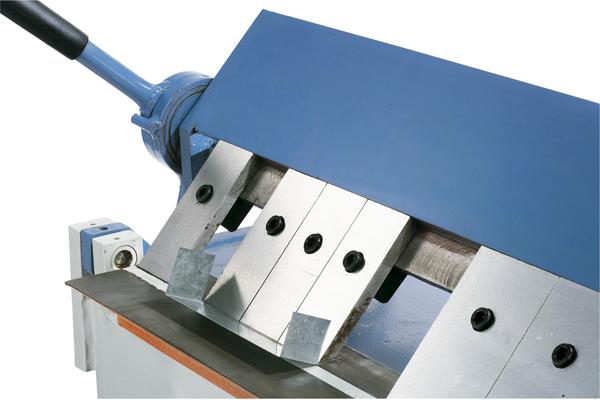

- Removeable segments for bending of boxes
- Secure clamping of the sheet metal by means of a special clamping device
Standard accessories Bernardo SB 915 S Swivel bending machine
- Segmented upper beam
- Bending segments 25 | 51 | 77 | 203 | 255 | 305 mm
Technical specifications Bernardo SB 915 S Swivel bending machine
| Working length | 920 mm |
| Sheet thickness max. (400 N / mm2) | 1,0 mm |
| Max. opening | 25 mm |
| Bending angle | 0 - 135° |
| Working height with stand | 900 mm |
| Width | 1130 mm |
| Depth | 320 mm |
| Height * | 420 mm |
| Weight approx. ca. | 70 kg |
| * without stand |
|
