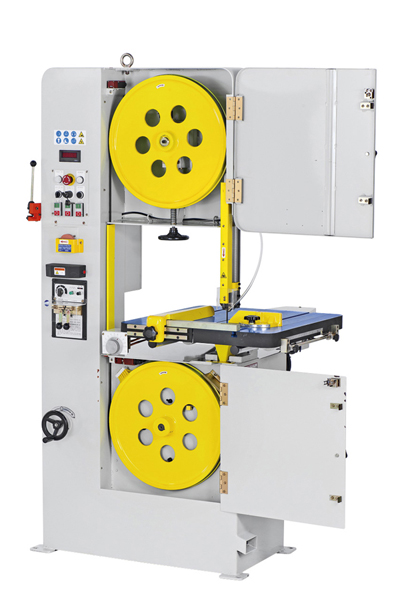

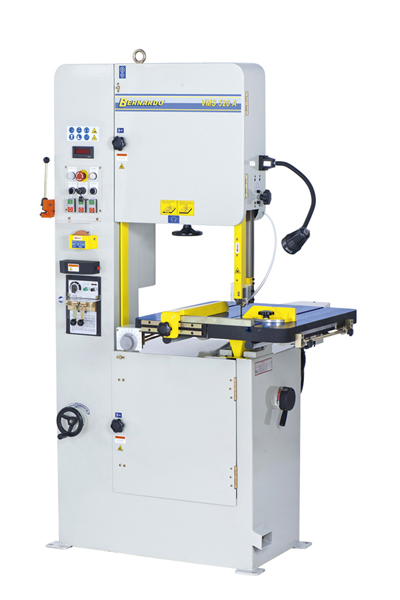

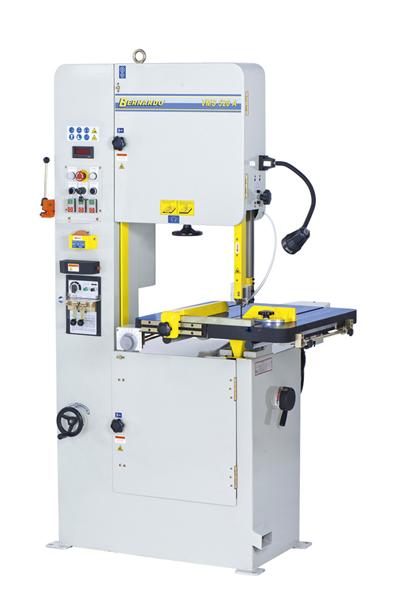

The VMS 610 A vertical band saw is equipped with an automatic table feed. The model is suitable for cutting of almost all materials, such as steel, plastics, non-ferrous metals, metal composites etc. This model is predominately used in general production, tool making, fixture construction and productions of punch dies and cutting tools.
Properties Bernardo sawing machine with automatic table feed VMS 610 A
- Solid grey cast-iron table, the large work rest ensures high work safety
- Complete with blade welding device, annealing device, shear and grinder
- Equipped with stepless speed adjustment up to 500 m/min
- Rigid steel construction of machine body allows for smooth run
- Blade guiding features hardened and polished V-guide pads
- Ideal for sawing of complex contours and shapes
- Standard accessories include blow gun with compressor
- Bandsaw blades starting with a width of 3 mm allow sawing of radii

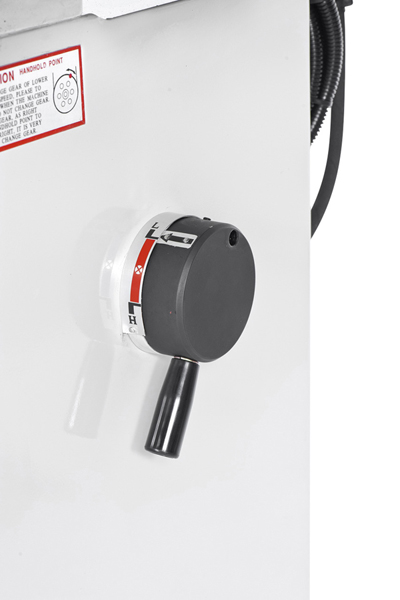

- Handwheel allows adjustment of blade tension
Standard accessories Bernardo sawing machine with automatic table feed VMS 610 A
- Bandsaw blade
- Blade welding device with annealing device
- Halogen light
- Shear
- Grinder
- Chip brush
- Blow gun
- LED digital readout
- Rip fence
- Mitre fence
- Groove table
Technical specifications Bernardo sawing machine with automatic table feed VMS 610 A
|
Cutting width |
610 mm |
|
Cutting height |
340 mm |
|
Working height |
1015 mm |
|
Cutting speed setting 1 |
20 – 85 m/min |
|
Cutting speed setting 2 |
120 – 500 m/min |
|
Bandsaw blade length |
3970 mm |
|
Bandsaw blade width |
3 – 20 mm |
|
Table size |
660 x 700 mm |
|
Table tilting range |
L 5° / R 15° |
|
Table travel |
350 mm |
|
Motor power |
1,5 kW |
|
Blade welding device |
4,2 kVA |
|
Machine dimension (L x D x H) |
1570 x 1100 x 2140 mm |
|
Weight approx. |
850 kg |
