The vertical bandsaws VMS 1000 is designed for cutting of various materials (for example steel, plastics, non-ferrous materials etc.). The application area is predominantly targeted at general production, tool and jig making and for the production of punching and cutting tools.on Stanz- und Schnittwerkzeugen.

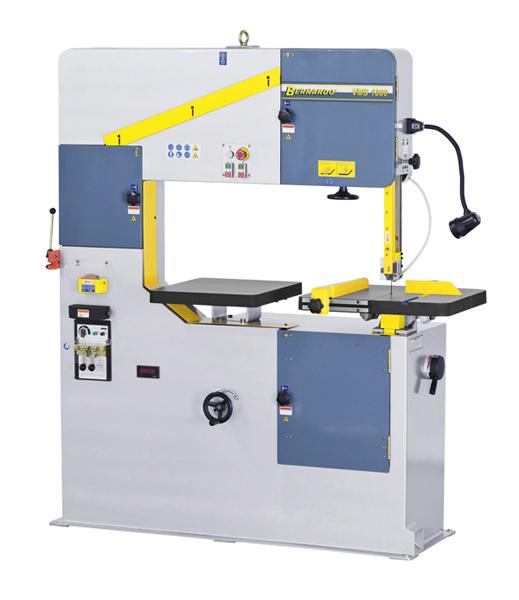

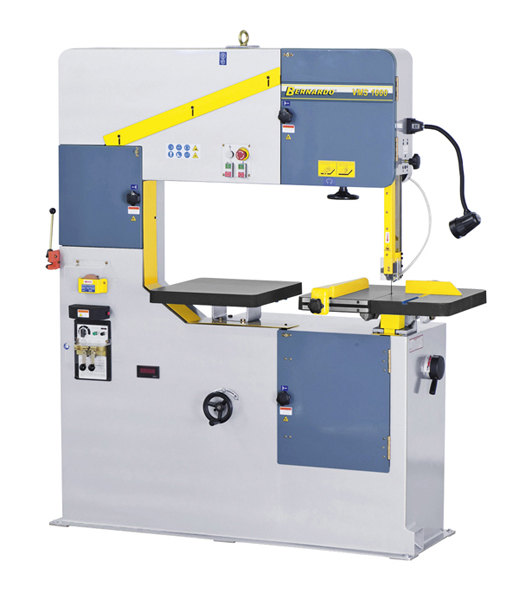

Properties Bernardo sawing machine VMS 1000
- Solid grey cast-iron table – the large surface improves safety aspects
- Blade welding device, annealing device, shear and grinder come standard
- Complete with stepless speed adjustment
- Solidly constructed steel body ensures smooth running
- High-quality bandsaw blade guide guarantees precise results
- Convenient cutting of irregular shaped workpieces
- Work table tilts 15º to all sides
- Blow gun with compressor is a standard accessory
- 3 mm bandsaw blades are optionally available for radius cutting
Standard accessories Bernardo sawing machine VMS 1000
- Bandsaw blade
- Blade welding device with annealing device
- Halogen light
- Shear
- Grinder
- Chip brush
- Blow gun

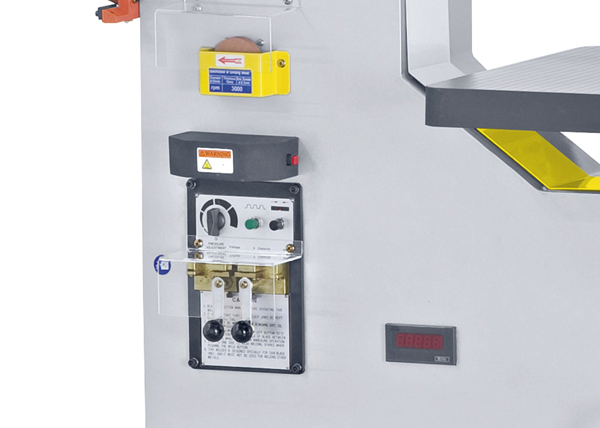

- LED digital readout
- Groove table
Technical specifications Bernardo sawing machine VMS 1000
|
Cutting width |
1010 mm |
|
Cutting height |
340 mm |
|
Working height |
1000 mm |
|
Cutting speed setting 1 |
25 - 85 m/min |
|
Cutting speed setting 2 |
120 - 500 m/min |
|
Bandsaw blade length |
4540 mm |
|
Bandsaw blade width |
3 - 16 mm |
|
Table size |
600 x 490 mm |
|
Size of additional table |
450 x 500 mm |
|
Table tilting range (in 4 directions) |
15° |
|
Motor power |
1,5 kW |
|
Blade welding device |
2,4 kVA |
|
Machine dimension (L x D x H) |
1770 x 760 x 1930 mm |
|
Weight approx. |
800 kg |
