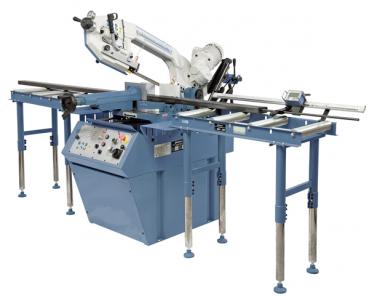

The MBS 315 DG-VR PRO double mitre saw features a vice which moves in conjunction with the saw arm. The stepless cutting speed, the option of automatic to manual mode as well as the belt tension display via manometer are further features which make this model highly attractive for each user.
Properties Bernardo sawing machine MBS 315 DG -VR Pro
- The cutting groove in the rotary table moves in conjunction with the swivelling of the saw arm therefore the table suffers no damage when cutting angles
- Quick clamping vice can be moved for double mitre cuts
- Bandsaw blade guiding with carbide inserts and integrated coolant device
- Oversize vice with quick clamping lever and work piece rest – ideal for a series of cuts

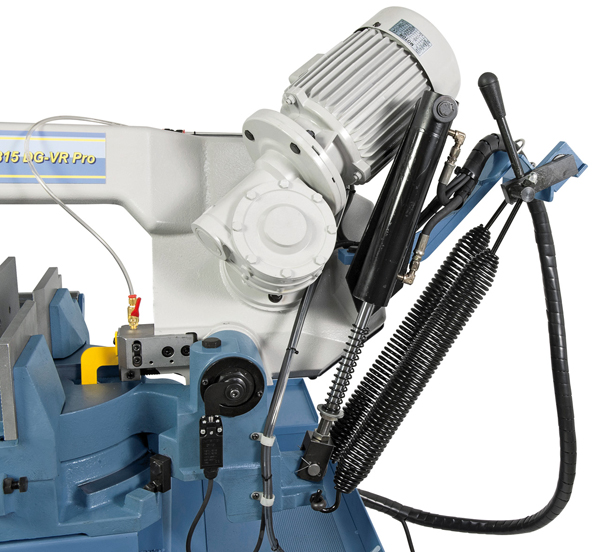

- Drive features hardened and polished gear worm shaft and bronze worm wheel
- Suitable for cutting of profiles, pipes, full iron materials and non-ferrous metals
- Torsion-free , rigid grey cast-iron saw arm
- Automatically shuts off when cut is finished
- Stepless cutting speed allows for ideal adjustment to each work piece
- Saw arm tilts left (-45°) and right (+60°) for double mitre cuts
Standard accessories Bernardo sawing machine MBS 315 DG -VR Pro
- Bandsaw blade
- Material fence
- Stand
- Manometer for blade tension
- Bandsaw blade guiding with carbide inserts
- Quick clamping vice
- Coolant device
- Hydraulic cylinder
- Motor protective switch
- Automatic shut-down
Technical specifications Bernardo sawing machine MBS 315 DG -VR Pro
|
Cutting capacity round / square 90° |
255 mm / 230 x 230 mm |
|
Cutting capacity flat 90° |
315 x 230 mm |
|
Cutting capacity round / square 45° R |
195 mm / 190 x 190 mm |
|
Cutting capacity flat 45° R |
195 x 230 mm |
|
Cutting capacity round / square 45° L |
180 mm / 160 x 160 mm |
|
Cutting capacity flat 45° L |
160 x 160 mm |
|
Cutting capacity round / square 60° R |
115 mm / 115 x 115 mm |
|
Cutting capacity flat 60° R |
115 x 160 mm |
|
Working height |
985 mm |
|
Bandsaw blade dimension |
2750 x 27 x 0,9 mm |
|
Cutting speed, stepless |
20 - 80 m/min |
|
Coolant pump |
100 W |
|
Motor power output S1 100% |
1,5 kW |
|
Motor power input S6 40% |
2,2 kW |
|
Voltage |
400 V |
|
Machine dimension (L x D x H) |
2000 x 1300 x 1900 mm |
|
Weight approx. |
390 kg |
