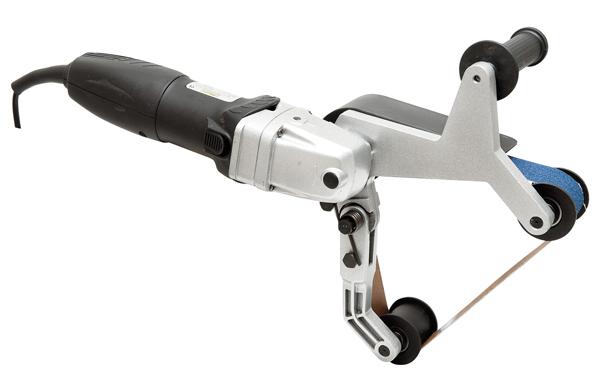

Bernardo sanding machine TBS 760
The TBS 760 pipe grinding machine is a highly versatile, handy model for various grinding, polishing and satin finishing works. This model is mainly used in metal and railing work as well as locksmiths.
Features Bernardo sanding machine TBS 760

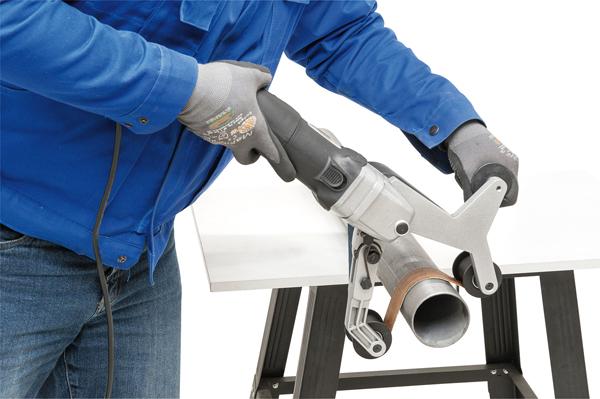

- Ideal for grinding and polishing of pipe constructions
- Suitable for follow up works (grinding, satin finishing and polishing) on mounted rails
- Handle can be turned 180º, allowing minimum space requirements for example handrails close to walls
- Powerful, high-torque drive motor with soft start and overload protection
- Special electronic device allows constant band speed
- Effective removal of welding seams through power motor
- Easy, straightforward grinding belt change, no toosl required
- 2 steps allow 360º peripheral grinding
Standard accessories Bernardo sanding machine TBS 760
- Handle
- Sanding belt
- 2 pcs. carbon brush
Technical specifications Bernardo sanding machine TBS 760
|
Belt length |
760 mm |
|
Belt width |
40 mm |
|
Pipe diameter max. |
180 mm |
|
Belt speed |
2,4 - 9,1 m/sec. |
|
No load speed |
(6) 900 - 2800 rpm |
|
Power |
800 W |
|
Voltage |
230 V |
|
Weight approx. |
3,9 kg |
