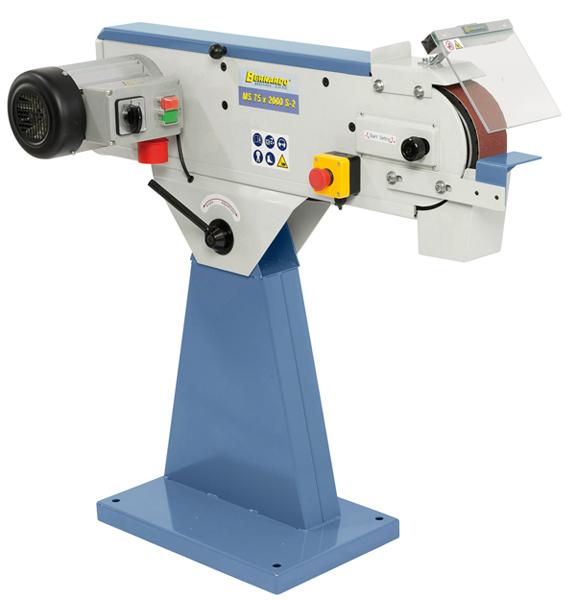

The MS 75 x 2000 S-2 is a very economical and cost effective belt sanding machines. The powerful motor and the robust construction make this model ideal for professional workshops and in small series production.
Features Bernardo sanding machine MS 75 x 2000 S-2
- Comes complete with 2 speed settings, optimal for grinding of stainless steel
- Universal use for grinding of edges, surfaces and round grinding
- Graphite coating on grinding surface increases sliding capacity of sanding belt
- Spring loaded device ensures consistent belt tension
- User-friendly belt change, fast and straightforward
- High belt speed guarantees brilliant sanding performance
- Quick adjustment for horizontal and inclined position
- Universal use for trade and industry

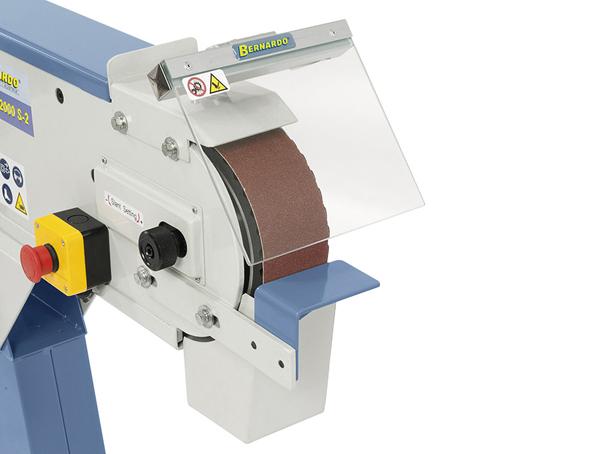

- Large face grinding surface with protective cover
- Includes fine adjustment for parallel belt run
Standard accessories Bernardo sanding machine MS 75 x 2000 S-2
- Sanding belt grit 80
- Folding protective glass
- Sanding and supporting table
- Workpiece fence
- Dust extraction outlet
- Motor protective switch
- Rubber coated grinding roller
- Graphite coating
- Stand
- Separate stop switch
Technical specifications Bernardo sanding machine MS 75 x 2000 S-2
|
Belt dimensions |
75 x 2000 mm |
|
Belt speed |
14,5 / 29 m/sec. |
|
Contact disc Ø x W |
200 / 80 mm |
|
Belt sanding table |
460 x 75 mm |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
1,5 / 2,2 kW |
|
Motor power input S6 40% |
2,2 / 3,0 kW |
|
Voltage |
400 V |
|
Length |
1080 mm |
|
Width |
440 mm |
|
Height |
1000 mm |
|
Weight approx. |
67 kg |
