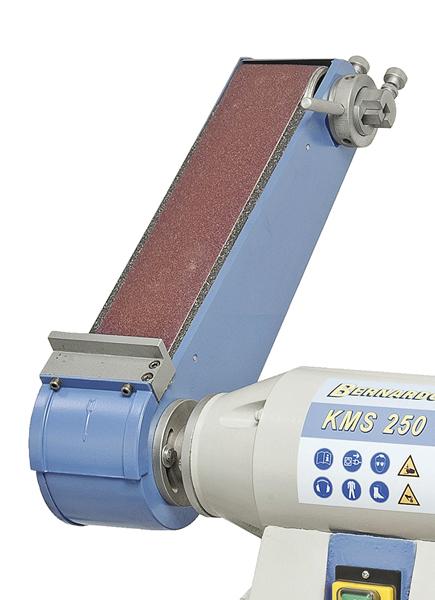

The KMS 250 is an incredibly economical universal grinding machine purchased at a relatively low cost. The powerful motor and the robust construction make this model ideal for professional workshops.
Features Bernardo sanding machine KMS 250
- Universal use for various materials (metals, plastics, wood etc.)
- Tiltable support table for a large variety of applications
- Balanced rotor features high quality ball bearings to ensure a smooth run
- Powerful motor guarantees high torque
- Motor comes equipped with copper wiring for long life span
- Sanding unit can be used in horizontal as well as vertical position
- Sanding unit complete with dust port (diameter 38 mm)
- On-/off switch according IP 54 standards and undervoltage release
Standard accessories Bernardo sanding machine KMS 250
- Roughing wheel grit 36
- Sanding belt grit 80
- Sanding unit SA 2
- Graphite coating
- Workpiece support
- Spark protection
Technical specifications Bernardo sanding machine KMS 250
|
Grinding wheel Ø x W |
250 x 32 mm |
|
Grinding wheel bore |
32 mm |
|
Grinding wheel grit |
Grit 36 |
|
Sanding belt |
1016 x 75 mm |
|
Speed of grinding wheel |
2850 rpm |
|
Speed of sanding belt |
16,4 m/sec. |
|
Dust extraction outlet |
38 mm |
|
Tilting range sanding unit |
90° |
|
Grinding area |
300 x 75 mm |
|
Motor power output S1 100% |
1,5 kW |
|
Motor power input S6 40% |
2,0 kW |
|
Voltage |
400 V |
|
Width |
580 mm |
|
Depth |
310 mm |
|
Height |
570 mm |
|
Weight approx. |
34 kg |
