The KMS 200 S is an incredibly economical universal grinding machine purchased at a relatively low cost. The powerful motor and the robust construction make this model ideal for professional workshops.
Features Bernardo sanding machine KMS 200 S - 400 V
- Complete with solid, adjustable workpiece support for optimal results
- Wide range of applications for various materials, such as metals, plastics, wood etc.
- Perfectly designed die-casting machine body

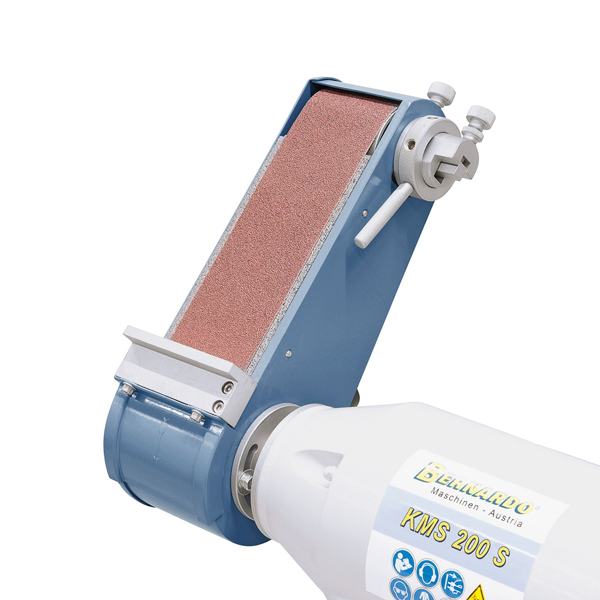

- Sanding unit can be used in horizontal as well as vertical position
- Quick clamping lever allows for convenient change of sanding belt
- Rotor features ball bearings to guarantee smooth running and a long life span
- Ideal for chamfering, surface and contour grinding
- Combines belt sanding and ordinary sanding operations
- High quality manufacturing ensures long life span
Standard accessories Bernardo sanding machine KMS 200 S - 400 V

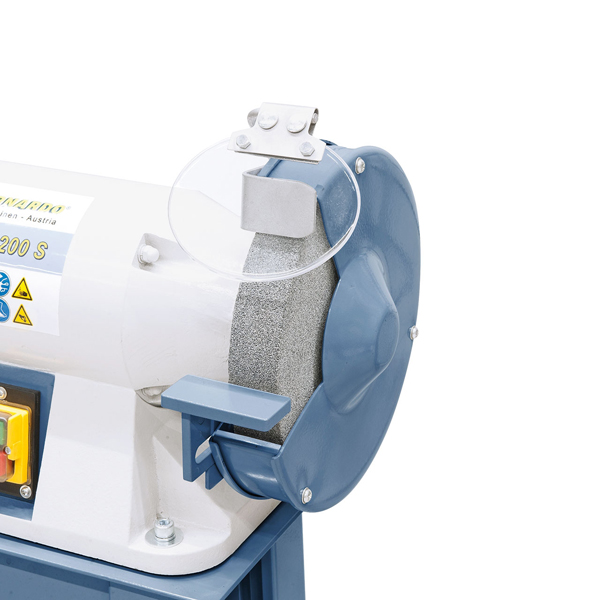

- Roughing wheel grit 36
- Sanding belt grit 80
- Sanding unit SA 1
- Graphite coating
- Workpiece support
- Spark protection
Technical specifications Bernardo sanding machine KMS 200 S - 400 V
|
Grinding wheel Ø x W |
200 x 32 mm |
|
Grinding wheel bore |
32 mm |
|
Grinding wheel grit |
Grit 36 |
|
Sanding belt |
762 x 75 mm |
|
Speed of grinding wheel |
2850 rpm |
|
Speed of sanding belt |
16,4 m/sec. |
|
Tilting range of sanding unit |
32 mm |
|
Grinding area |
90° |
|
Dust extraction outlet |
180 x 75 mm |
|
Motor power output S1 100% |
0,9 kW |
|
Motor power input S6 40% |
1,25 kW |
|
Voltage |
400 V |
|
Width |
540 mm |
|
Depth |
310 mm |
|
Height |
370 mm |
|
Weight approx. |
27 kg |
