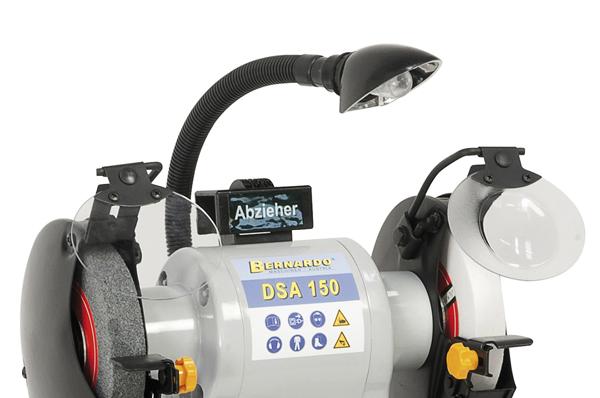

Bernardo sanding machine DSA 150
The highly versatile bench grinding machine DSA 150 is ideal for amateurs and for the professional craftsmen. This model feature a low-noise, maintenance-free induction motor as well as high-quality grinding wheels to ensure optimal sharpening and deburring of tools.
Features Bernardo sanding machine DSA 150
- Comes complete with a solid, adjustable workpiece support to achieve top results
- Universal use for various materials (metals, plastics, wood etc.)
- Rotor features ball bearings to ensure smooth operation and long life-span
- State-of-the-art machine design, aluminium die-cast construction
- Work lamp and wheel dressing tool as part of standard equipment
- Coolant tank integrated in machine housing
- Oversize protective glass on both sides protect from sparks
- High-performance motor ensures powerful torque
- Protective cover closed on sides for more efficient spark protection
Standard accessories Bernardo sanding machine DSA 150
- Roughing wheel grit 36
- Finishing wheel grit 80
- Spark protection on both sides
- Workpiece support
- LED working light
- Integrated coolant tank
- Wheel dressing tool
Technical specifications Bernardo sanding machine DSA 150
|
Grinding wheel Ø x W |
150 x 25,4 mm |
|
Grinding wheel bore |
12,7 mm |
|
Grinding wheel grit |
Grit 36 / Grit 80 |
|
Speed |
2850 rpm |
|
Motor power output S1 100% |
0,37 kW |
|
Motor power input S6 40% |
0,50 kW |
|
Voltage |
230 V |
|
Width |
345 mm |
|
Depth |
270 mm |
|
Height |
275 mm |
|
Weight approx. |
10 kg |
