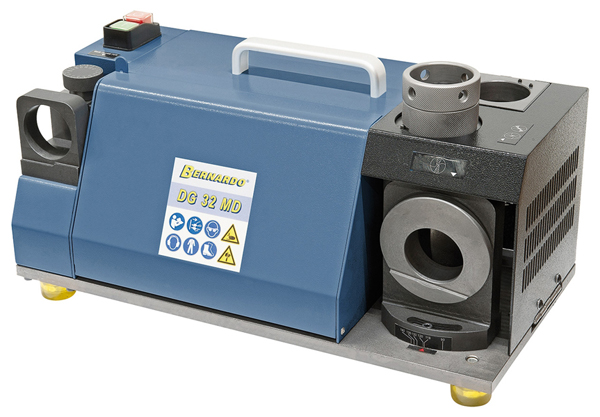

Bernardo sanding machine DG 32 MD
The DG 32 MD drill grinding machine is suitable for most common double edged twist drills out of HSS cobalt, carbide or similar - ranging from 12 – 32 mm. The advantage of this model is the possibility of relief-grinding of the cutting face, which ensure a perfect drilling result.
Features Bernardo sanding machine DG 32 MD
- Including device for thinning, that means better centering of the drill bit on the workpiece and reduction of the required feeding force
- Additional station for relief-grinding of the cutting face (relief angle)
- 20 pcs. ER 40 collets are part of the standard equipment, also suitable for clamping of intermediate sizes
- Allows for grinding of HSS-, carbide or TiN- coated twist drills ranging from 12 – 32 mm
- Rotor features precise ball bearings to guarantee smooth operation
- Heavy machine construction and rubber feet minimize vibrations
- Point angle can be adjusted to all conventional twist drills
Standard accessories Bernardo sanding machine DG 32 MD
- Grinding wheel CBN
- Collets ER 40, 12 – 32 mm, 20 pcs. (13 / 14 / 15 / 16 / 17 / 18 / 19 / 20 / 21 / 22 / 23 / 24 / 25 / 26 / 27 / 28 / 29 / 30 / 31 / 32 mm)
- Collet holder ER 40
Technical specifications Bernardo sanding machine DG 32 MD
|
Drill diameter |
12 – 32 mm |
|
Point angle |
90° - 140° |
|
Speed |
4800 rpm |
|
Motor power |
0,25 kW |
|
Voltage |
230 V |
|
Length |
425 mm |
|
Width |
220 mm |
|
Height |
235 mm |
|
Weight approx. |
30 kg |
