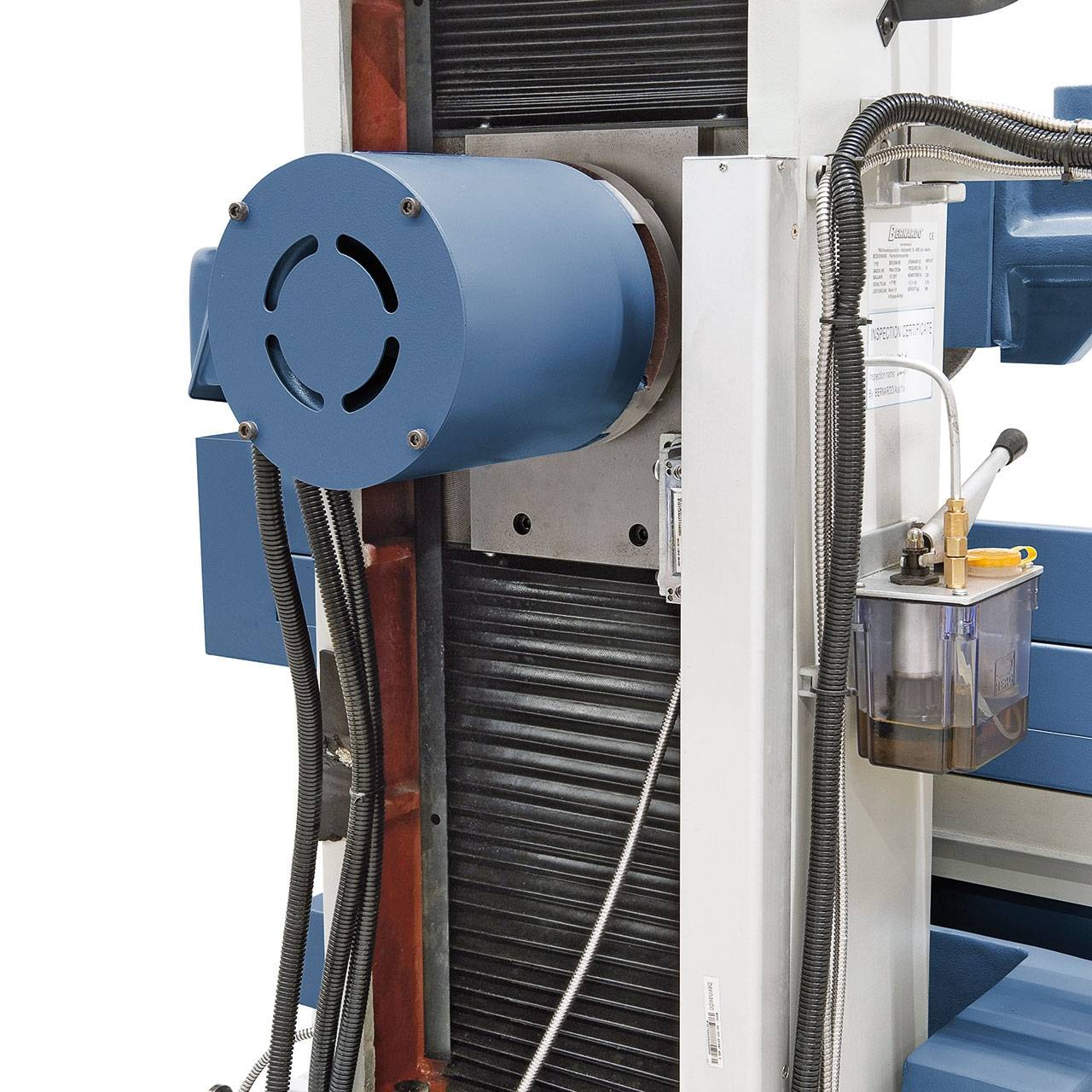

Bernardo sanding machine BSG 2040 M
The BSG 2040 MC is a solidly constructed surface grinding machine with compact dimensions. The high user-friendliness make this model ideal for training workshops, education as well as tool and die making.
Properties Bernardo sanding machine BSG 2040 M
- High quality bearings of spindle ensure vibration-free run
- Hardened, polished linear guiding for table longitudinal movement
- Double V-guide of cross table movement
- Main parts, such as stand, base and apron made of high quality grey cast iron
- Maintenance-free, permanently lubricated spindle
- Completely equipped with 2-axis digital readout and permanently magnetic clamping plate
- Central lubrication of all guide rails
- Essential for grinding of small parts and fast grinding
Standard accessories Bernardo sanding machine BSG 2040 M
- 2-axis digital readout ES-12 H with LCD-display
- Grinding wheel
- Flange
- Machine feet
- Coolant device
- Dressing diamond
- Balancing stand
- Balancing arbor
- Tools
- Central lubrication
- LED working light
- Protective cover
- Longitudinal and cross fence
- Splash guard

Technical specifications Bernardo sanding machine BSG 2040 M
Table clamping surface | 445 x 205 mm |
T-slot number / width | 1 / 13 mm |
Permanent magnetic chuck | 200 x 400 mm |
Max. Travel, longitudinal | 560 mm |
Max. Travelling distance, transverse | 225 mm |
Distance spindle centre / table max. | 440 mm |
Grinding disc | 200 x 13 x 31,75 mm |
Cross adjustment | Manual adjustment: 5 mm/rev |
Scale division on handwheel | 0,02 mm |
Vertical infeed | Manual adjustment: 1 mm/rev |
Scale division on handwheel | 0,005 mm |
Spindle speed | 2850 rpm |
Coolant device | 55 l |
Engine power | 1,5 kW |
Machine dimensions (W x D x H) | 1460 x 1200 x 1740 mm |
Weight approx. | 850 kg |
