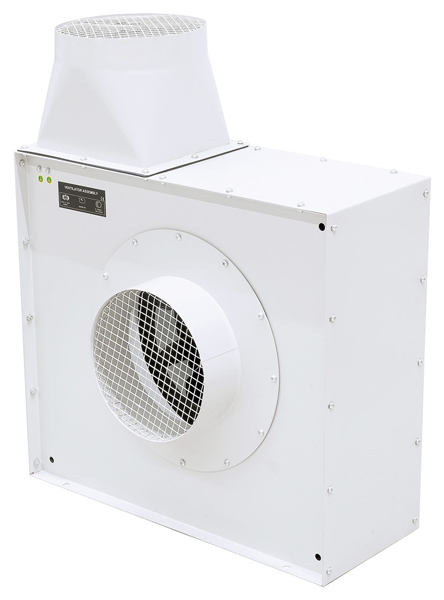

Bernardo RV 4000 Centrifugal fan

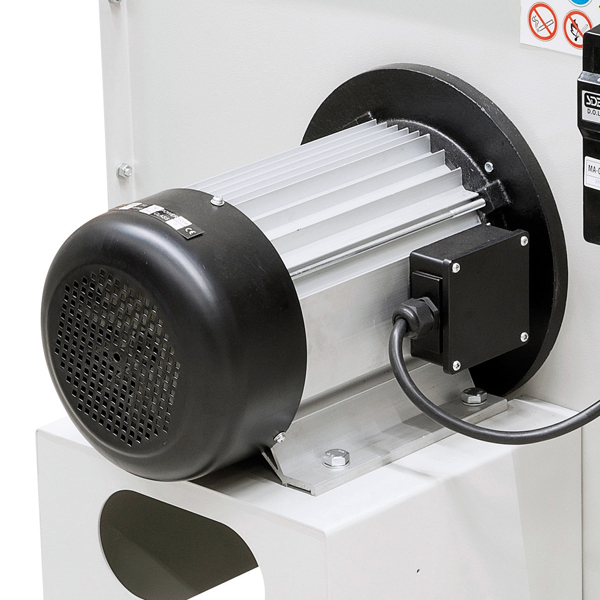

The radial collectors of the RV-series feature a powerful drive motor and optimally positioned fan wheels, making these models extremely quiet and highly efficient. They are commonly used for removal of fine waste and highly suitable for aeration and ventilation purposes.
Features Bernardo RV 4000 Centrifugal fan
- Using radial collectors ensures ideal production conditions and clean air at the work place
- Ideal for extracting dust, chippings, smoke, grains, wood and plastic particles etc.
- Solid steel plate construction which keep static charge to a minimum - compared to plastic housing
- High-quality powder coating creates scratch-resistant surface
- Constant extraction force even during long operations
- Statically and dynamically balanced steel fan wheel
Technical specifications Bernardo RV 4000 Centrifugal fan
|
Capacity max. |
6500 m3/h |
|
Low pressure max. |
2000 Pa |
|
Inlet diameter |
250 mm |
|
Outlet diameter |
250 mm |
|
Motor power |
4,0 kW (5,5 HP) |
|
Voltage |
400 V |
|
Dimension (W x D x H) |
670 x 610 x 800 mm |
|
Weight approx. |
55 kg |
