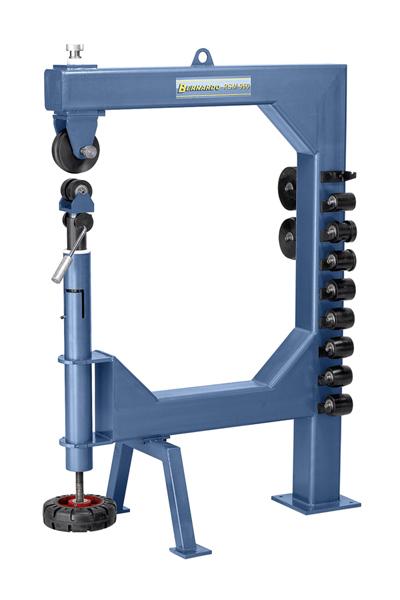

Bernardo RSM 960 Roller stretching machine
Properties Bernardo RSM 960 Roller stretching machine
- For producing convex and concave sheet metal parts such as mudguards, doors, hoods, .....
- By handwheel adjustable pressing pressure, thereby a wide variety of radii can be produced
- Quick release mechanism on the lower anvil wheel for easy removal of the finished workpiece
- Extended application area, upper wheel and lower anvil wheel rotatable through 90°
- Solid welded steel construction for precise work
Standard accessories Bernardo RSM 960 Roller stretching machine
- 9 pcs. anvil wheels
- 3 pcs. rolling wheel
- Quick release mechanism of the lower anvil wheel
Technical specifications Bernardo RSM 960 Roller stretching machine
|
Throat |
865 mm |
|
Internal height approx. |
955 mm |
|
Sheet thickness max. * |
1,3 mm |
|
Aluminium |
1,7 mm |
|
Rolling wheel (Ø x width) |
152 x 52 mm |
|
Machine dimension (W x D x H) |
1250 x 650 x 1620 mm |
|
Weight approx. |
180 kg |
|
* Material strength 400 N/mm² |
|
