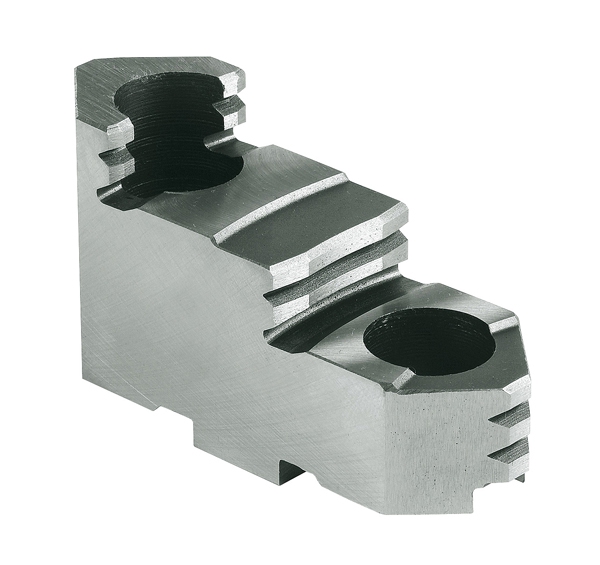

Bernardo reversible top jaws TJ-PS3-315

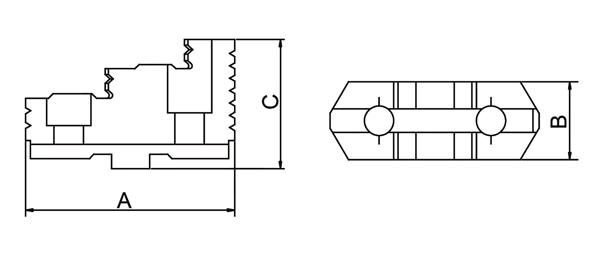

Technical data Bernardo reversible top jaws TJ-PS3-315
Chuck size | 315 mm |
M | 31,75 mm |
H | 47,6 mm |
G | 19,04 mm |
L | 14,5 mm |
J | 14 mm |
K | 20 mm |
D | 12,71 mm |
E | 4 mm |
F | 3,2 mm |
R | 35,4 mm |
N | 17,5 mm |
C | 58 mm |
B | 37 mm |
A | 108 mm |
O | 31 mm |
P | 76,5 mm |
