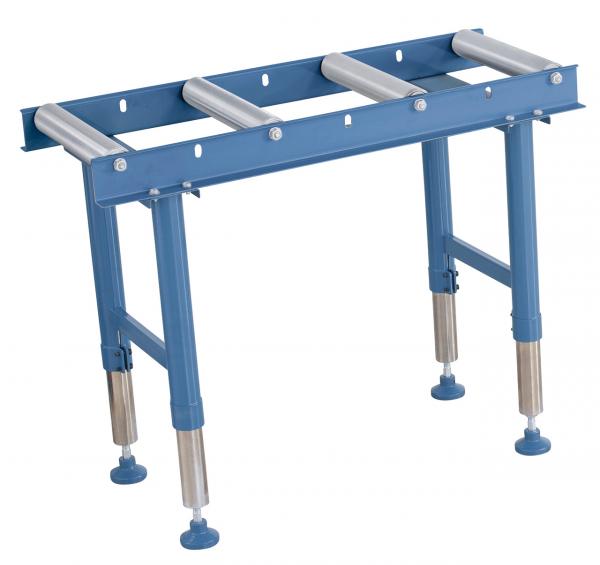

Features Bernardo RB 4 - 1000 roller conveyor in stable design
The RB 4 roller conveyor is a particularly practical aid for supporting and moving long and heavy workpieces. It can be used individually and can be extended as required. Thanks to the retrofittable PVC-coated rollers, it can also be used for delicate materials.
- The frames of the roller conveyors consist of a stable U-profile
- Problem-free and rational material transport for the supply and removal of workpieces
- Secure workpiece support due to solid and heavy-duty galvanized steel rollers
- Universally applicable for e.g. circular metal saws, band saws, woodworking machines, ...
- Roller support infinitely height adjustable (620 - 1055 mm) and clampable
- Ideal for placing long and heavy workpieces
Available special accessories:
- PVC castor set for RB 4 / 7 / 10 / 13 (3 pcs.) (Art.No.: 07-1465)
- Length measuring system LS 1 (for self-installation) (Art.No.: 07-1466)
- Mounting plate for RB 4 / 7 / 10 / 13 (Art.No.: 07-1469)
Technical data Bernardo RB 4 - 1000 roller conveyor in stable design
| Track length |
1000 mm |
| Roll width |
360 mm |
| Roll diameter |
60 mm |
| Height adjustment |
620 - 1055 mm |
| Load capacity, max. |
500 kg |
| Standpipe diameter |
50 mm |
| Dimension (L x W) |
1000 x 450 mm |
| Weight approx. |
38 kg |
