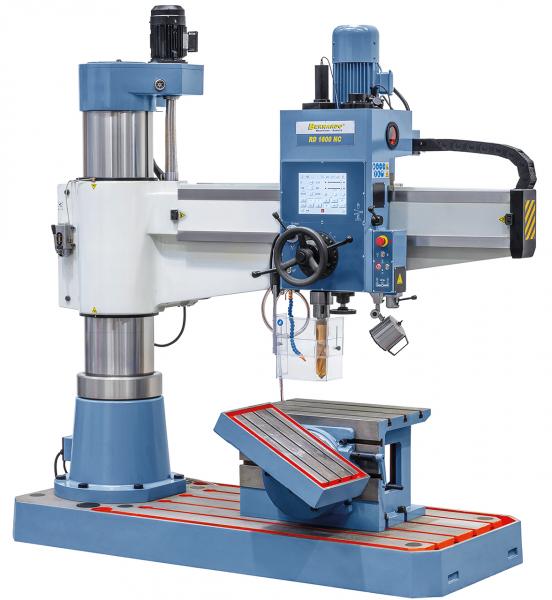

Bernardo radial drilling machine RD 2500 NC Vario

Product features Bernardo radial drilling machine RD 2500 NC Vario

The RD 2500 NC Vario radial drilling machine is ideal for drilling, countersinking and reaming large workpieces (e.g. steel beams, flanges ....). The special features of this model are the operation via a large touchscreen and the spindle sleeve feed via servo motor. Thanks to the wide range of possible applications, this machine is ideal for mechanical workshops, repair shops, mechanical engineering, ...


• The standard Bohrtronic control unit calculates the ideal speed or feed rate for drilling and tapping after entering the tool diameter and material (cast iron / steel)

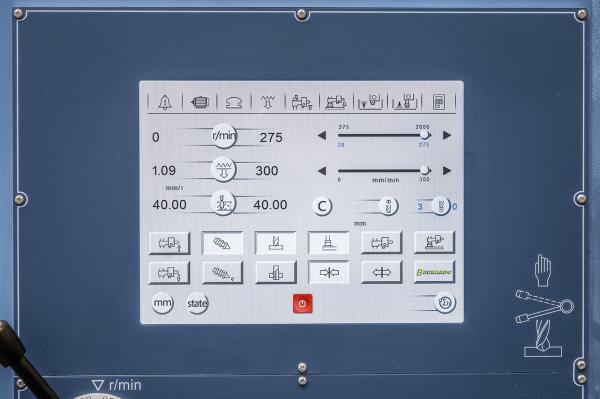

• Large touchscreen for all settings, e.g. speed, drilling / tapping, boom height adjustment, .....
• The spindle sleeve is fed via a high-quality servomotor
• Simple height adjustment of the boom arm via lifting motor, the position of the spindle remains unchanged, ideal for series production work
• Electronically adjustable drilling depth incl. checking of the input value
• Infinitely variable speed control as standard, the set speed can be read directly on the display
• Display of the units of measurement in either mm or inches
• Hardened and ground guide tracks on the arm
• Counterweight balances the weight of the quill
• Ideal for drilling, countersinking, reaming and thread cutting

Scope of delivery Bernardo radial drilling machine RD 2500 NC Vario

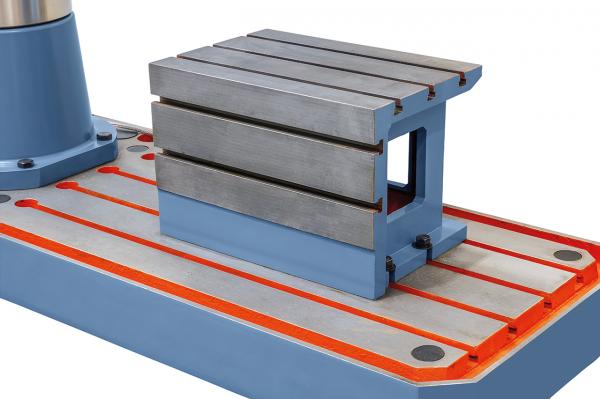

• Cube table
• Drill chuck arbour
• Reducing sleeves
• LED machine light
• Initial filling with Shell Tellus 46
• Coolant system
• Touchscreen with Bohrtronic control
• Servo motor for quill feed
• Frequency converter

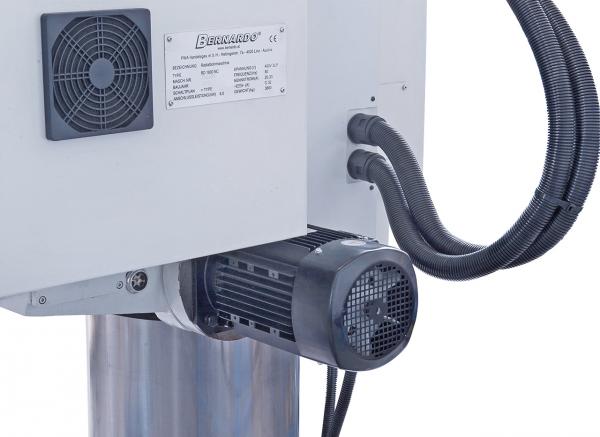

• Lift motor
• Hydraulic motor
• Height-adjustable protective cover
• Operating tool

Technical data Bernardo radial drilling machine RD 2500 NC Vario
