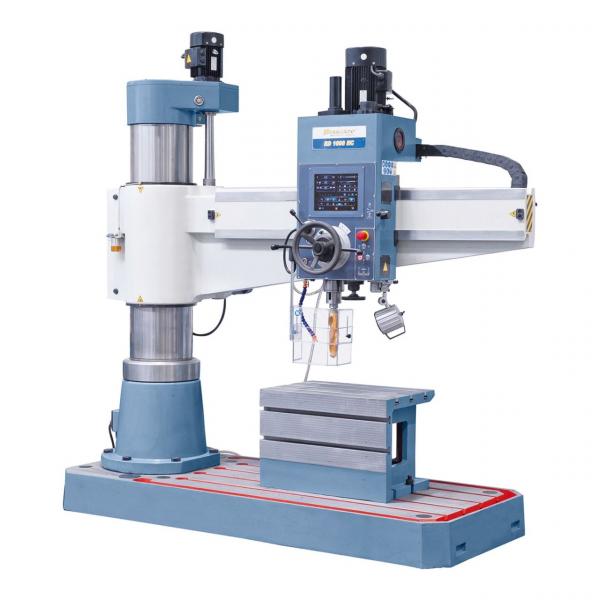

Bernardo Radial Drilling Machine RD 1600 x 60 NC Vario

The RD 1600 NC radial drilling machine is ideal for drilling, countersinking and reaming work on large workpieces (such as steel beams, flanges....). The special features of this model are the operation via a large touch screen and the spindle sleeve feed by means of a servo motor. Due to the versatile application possibilities, this machine is ideal for mechanical workshops, repair shops, machine construction, ...

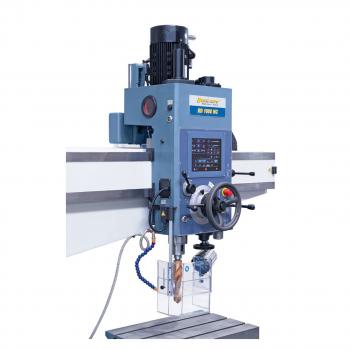

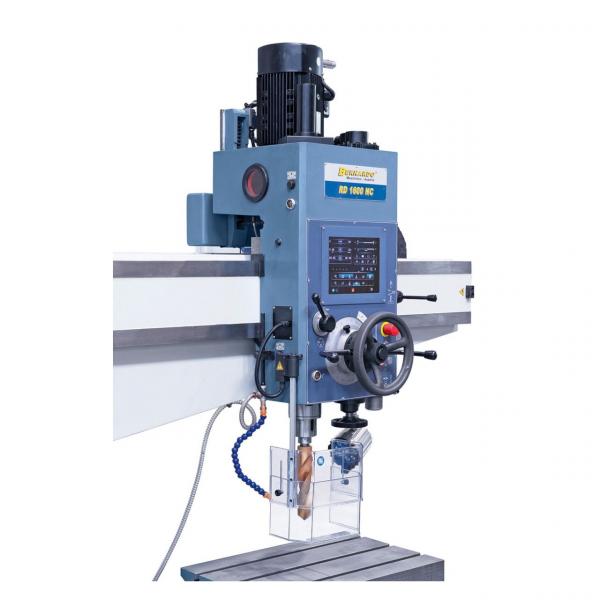

• Large touchscreen for all settings, e.g. speed, drilling / tapping, height adjustment of extension arm, ...

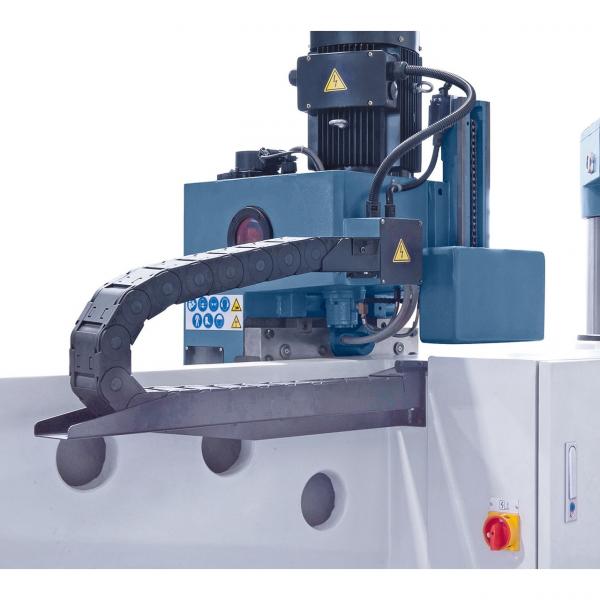

• Spindle sleeve feed via a high-quality servo motor

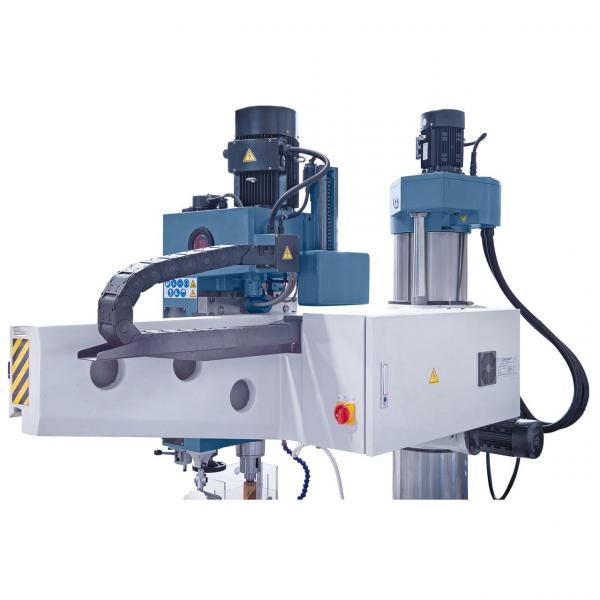

• Simple height adjustment of the extension arm via lift motor, the position of the spindle remains unchanged, ideal for series work
• Electronically adjustable drilling depth incl. input value check
• Infinitely variable speed control as standard, the set speed can be read directly on the display
• Display of the units of measurement either mm or inch
• Guide rails on the extension arm hardened and ground
• Counterweight to balance the weight of the spindle sleeve
• Ideal for drilling, countersinking, reaming and thread cutting

Scope of delivery Bernardo Radial Drilling Machine RD 1600 x 60 NC Vario​

• Cube table
• Drill chuck mandrel
• Reducing bushes MK 5/4, MK 4/3, MK 3/2
• LED machine light
• Initial filling with Shell Tellus 46
• Coolant device
• Touch screen
• Servo motor for spindle sleeve feed
• Frequency converter
• Hoist motor
• Hydraulic motor
• Height-adjustable protective cover
• Operating tool

Technical data Bernardo Radial Drilling Machine RD 1600 x 60 NC Vario​

Drilling power max.	60 mm
Thread cutting max.	M45
Projection min./max.	350 - 1600 mm
Vertical movement of the boom	585 mm
Drill head travel (horizontal)	1250 mm
Quill stroke	315 mm
Spindle mount	MK 5
Spindle speed	38 - 275, 275 - 2000 rpm
Feed range	0 - 300 mm/min
Distance spindle / dice table	165 - 750 mm
Distance spindle / base plate	665 - 1250 mm
Clamping surface base plate	1740 x 980 mm
Dice table (L x W x H)	750 x 500 x 500 mm
Engine power	4,0 kW
Machine dimension (W x D x H)	2490 x 1050 x 2780 mm
Weight approx.	3800 kg
