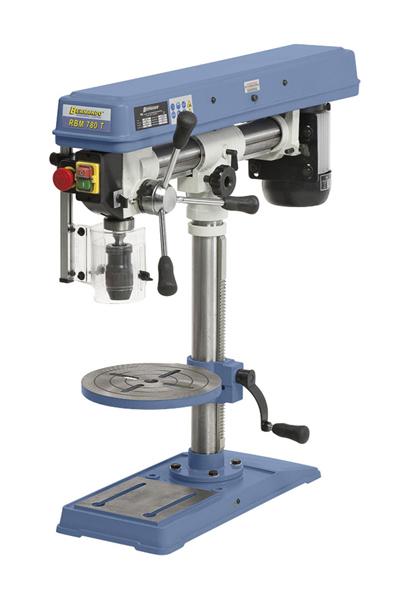

The RBM 780 T radial drilling machine features an extendable, tilt- and turnable drill head, making it extremly versatile. The great price to performance ratio makes this model an attractive choice for hobby craftsmen.
Features Bernardo Radial Drilling Machine 780 T - 230 V
- Precise machined work table tilts -45° to +45°
- Safety switch in accordance with the IP 54 standard features undervoltage release
- High concentricity, spindle seated in precision ball bearings
- Extendable, turn- and tiltable drill head ensures high productivity
- Solid, smooth steel column comes with gear rack for table height adjustment
- Grey cast-iron pulleys ensure smooth operation
- Ergonomically positioned handles allow for high operating comfort
- High-quality ball bearings ensure high spindle concentricity

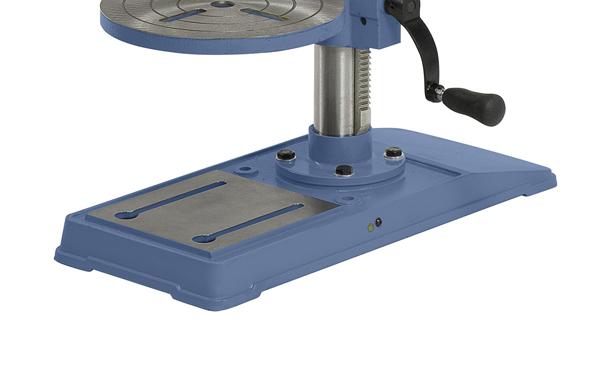

- Large machine base increases stability
Standard accessories Bernardo Radial Drilling Machine 780 T - 230 V
- Keyless drill chuck 1 - 16 mm / B 16
- Drill chuck arbor MT 2 / B 16
- T-slot nuts
- Height adjustable protective cover
- Separate emergency stop switch
- Tools
Technical specifications Bernardo Radial Drilling Machine 780 T - 230 V
|
Drilling capacity max. |
16 mm |
|
Drill chuck |
1 - 16 mm / B 16 |
|
Morse taper |
MT 2 |
|
Distance spindle to column min./max. |
115 - 395 mm |
|
Spindle speeds |
(12) 300 - 2550 rpm |
|
Drill head tiltable |
-90° to +45° |
|
Spindle stroke |
60 mm |
|
Column diameter |
58 mm |
|
Table size |
Ø 255 mm |
|
Working surface of base |
185 x 200 mm |
|
Motor power output S1 100% |
0,37 kW |
|
Motor power input S6 40% |
0,55 kW |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
280 x 850 x 820 mm |
|
Weight approx. |
40 kg |
