Bernardo PTO 03/400 Protection device for lathe

• The model PTO 03 is mounted directly on the spindle head. The screen consists of an opaque aluminium composite material
• This model is available in various sizes and protects the operator from direct contact with the lathe chuck and from hot chips, oil and coolant
• The protective hood, which is equipped with a semi-circular protective screen, can be mounted on the spindle head either on the side or on the rear
• The model is equipped with a safety micro switch

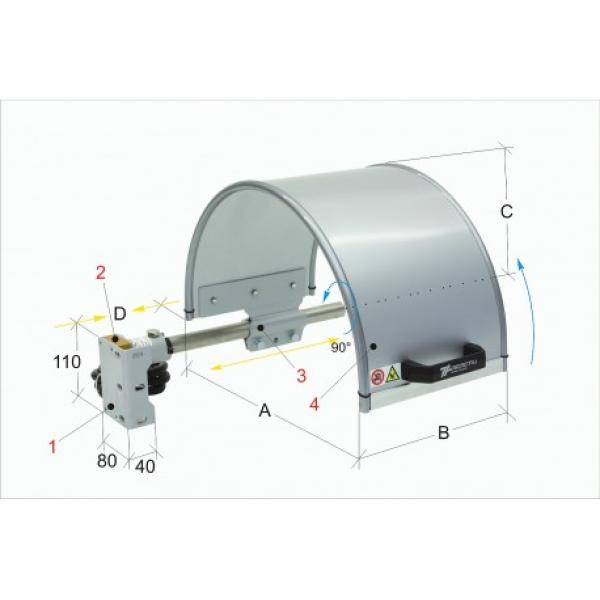

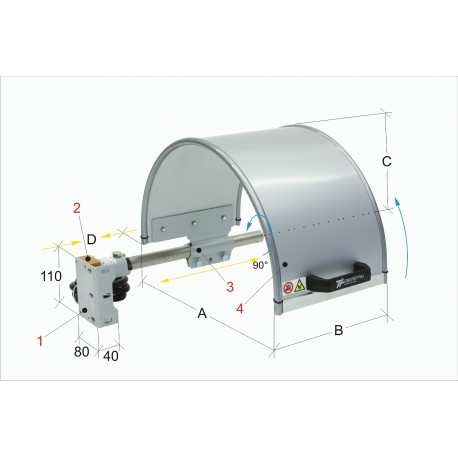

Technical data Bernardo PTO 03/400 Protection device for lathe​

1 front and side mounting bracket

2 safety microswitches, rotatable by 90° and with 2 opening contacts

3 Adjustable clamp with sheet steel support arm

4 Umbrella made in one piece from opaque HD polyethylene/aluminium composite
