Features Bernardo protection device for drilling machine PTR 20/300
- Suitable for use on large dimension drilling machines and radial drilling machines
- Protects the operator from direct contact with rotating parts of the spindle and from flying chips and coolant splashes
- Mounting on the left side of the machine
- The protective screen is vertically adjustable by means of a telescopic arm (3)
- Complete with safety microswitch
Technical data Bernardo protection device for drilling machine PTR 20/300
|
A
|
B
|
C
|
Weight
|
|
300
|
200
|
150
|
3.9 kg
|

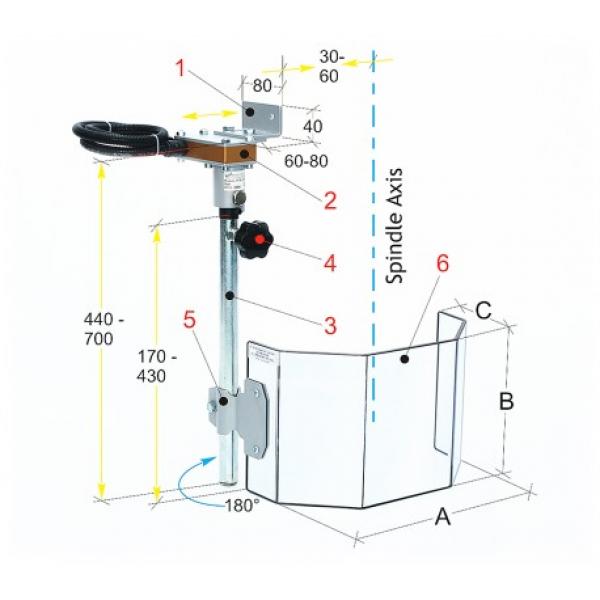

1 angle bracket made of sheet steel
2 safety micro switch housings, 180° rotatable, 2 opening contacts
3 Telescopic arm for the protective screen
4 Clamping screw for vertical adjustment of the protective screen
5 Clamp holder for the protective screen
6 Front polycarbonate visor
