Features Bernardo protection device for drilling machine PTR 11/140
- New device with double fastening system held by adjustable hexagonal arms
- Has a microswitch integrated in the swivel joint
- The safety microswitch is integrated in the special hinge that carries the protective screen
- Protects the operator from direct contact with rotating parts of the spindle and from flying chips and coolant splashes
- The protection screen is equipped with an innovative system for vertical opening in the positions 60° - 120° - 180°, which is mounted on an adjustable hexagonal arm.
Available in two versions:
- PTR 10/... for front mounting
- PTR 11... for side mounting
Technical data Bernardo protection device for drilling machine PTR 11/140
|
A
|
B
|
C
|
Weight
|
|
200
|
140
|
110
|
1.8 kg
|

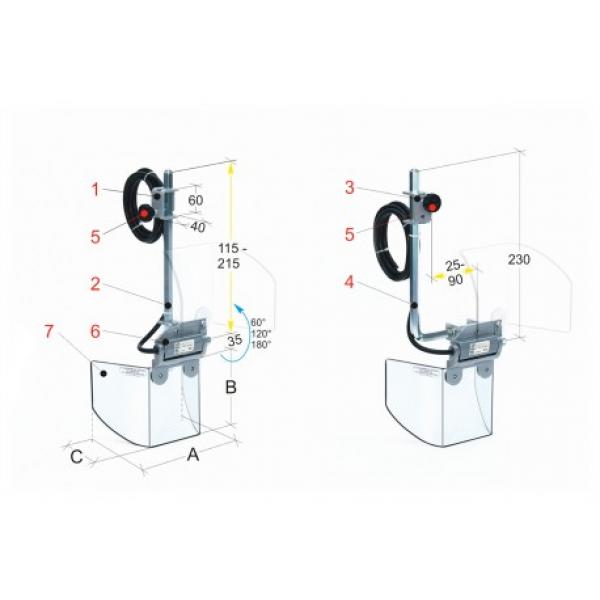

1 sheet steel angle bracket for front mounting
2 Hexagonal steel support arm for front mounting
3 sheet steel angle brackets for side mounting
4 Hexagonal steel support arm for side mounting
5 Clamping screw for vertical adjustment of the protective screen
6 Hinge carrying the protective screen, with integrated microswitch with 2 opening contacts
7 Front polycarbonate visor
