The Vario-lathe Profi 900 Vario is due to the extensive basic equipment (e.g: three-phase motor with frequency converter, main spindle bearing in P5-quality, micrometer longitudinal stop, slip clutch, LED machine light,...) the ideal machine for the demanding user. To reduce production times, this model is also available with a 2-axis digital display.
Features Bernardo Profi 900 Vario - 400 V Center lathe incl. 2-axis digital display
- Three-phase motor with frequency converter for higher power output and high torque
- Standard with 38 mm spindle bore for machining large shaft diameters
- With infinitely variable speed control as standard, the set speed is read off a digital display
- Versatile application possibilities: Precision mechanics, training and apprenticeship workshops, ...
- The feed adjustment is simple, smooth and precise
- Ideally suited for processing steel, non-ferrous materials and plastics
- Prism bed with large contact surface, inductively hardened and ground
- Precise spindle bearing arrangement with two adjustable precision tapered roller bearings
- High concentricity of the spindle nose - better than 0.009 mm
- Very handy, stable machines with lead and feed spindle
Scope of delivery Bernardo Profi 900 Vario - 400 V Center lathe incl. 2-axis digital display
- 2-axis digital display ES-12 V with LCD display
- 3-jaw chuck DK11-160 mm / D4
- Solid grain tips
- Change gears
- Quadruple tool holder
- Friction clutch

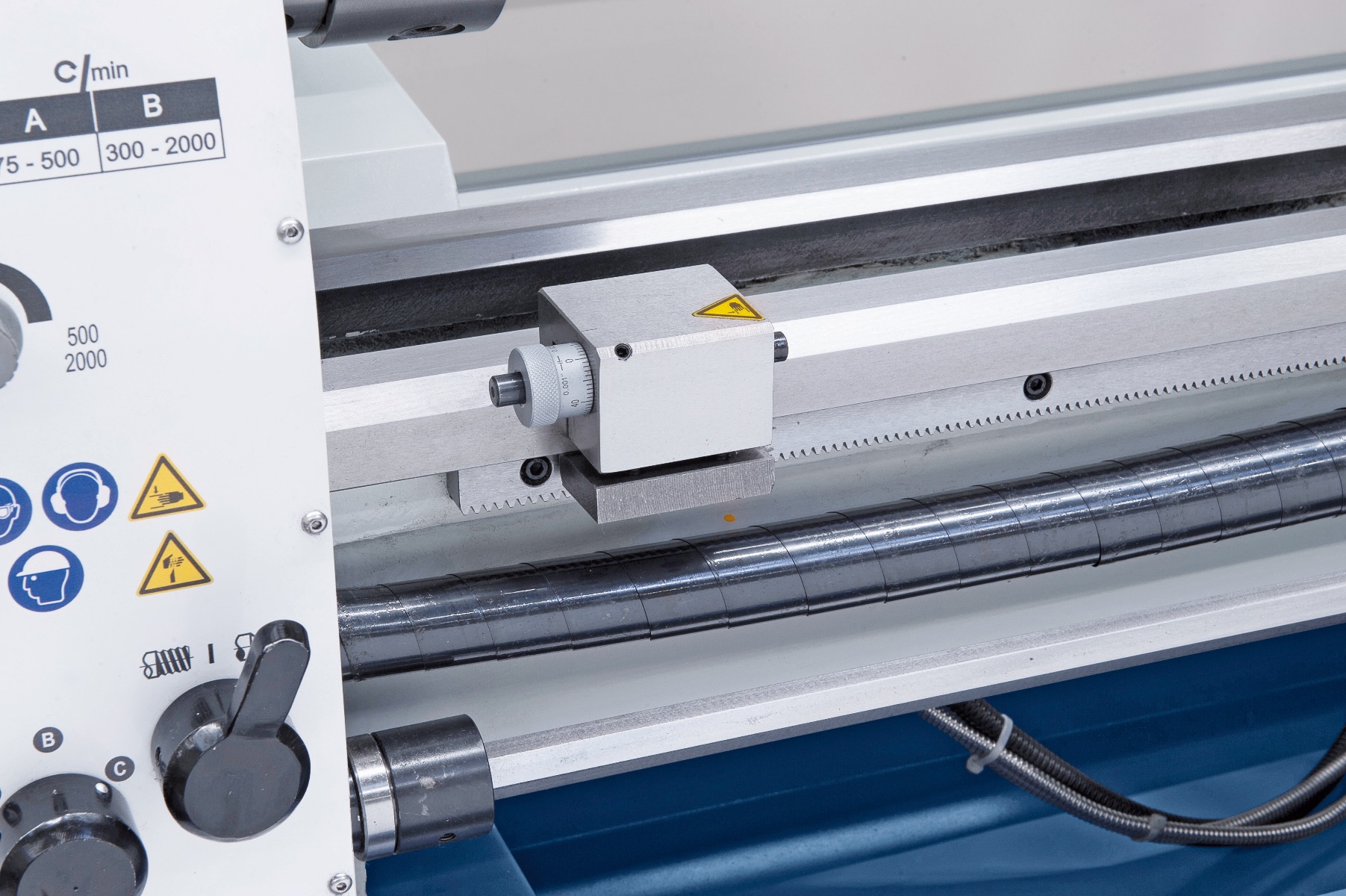

- Micrometer length stop
- Cross slide with upper support
- Frequency Inverter
- Digital speed display
- Thread gauge
- LED machine light
- chuck protection
- Chip back panel
- Spindle cover
- Operating tool
Technical data Bernardo Profi 900 Vario - 400 V Center lathe including 2-axis digital display
|
Top of the range
|
900 mm
|
|
Centre height
|
160 mm
|
|
swing over bed
|
320 mm
|
|
Spindle bore
|
38 mm
|
|
Mounting in the spindle bore
|
DIN 55029, D1-4
|
|
Speed range, infinitely variable
|
75 - 500 / 300 - 2000 rpm
|
|
Range longitudinal feeds
|
(15) 0.07 – 1.0 mm/U
|
|
Plan feeds range
|
(15) 0.017 – 0.25 mm/U
|
|
Metric threads
|
(18) 0.2 – 3.5 mm
|
|
inch thread
|
(21) 8 – 56 Gg/1“
|
|
quill path
|
100 mm
|
|
quill mount
|
MK 3
|
|
Motor output power S1 100%
|
1.5 KW / 400 V
|
|
Motor input power S6 40%
|
2.2 kW / 400 V
|
|
Machine dimensions (W x D x H)*
|
1650 x 650 x 600 mm
|
|
Weight approx.
|
240 kg
|
|
* without base frame
|
