The Vario lathe Profi 880 G Vario is equipped as standard with a countershaft, which makes it unnecessary to change the speed level using a V-belt. A further feature of this machine is the standard frequency converter, which guarantees a high torque in the lower speed range and an almost constant speed under load.
Features Bernardo Profi 880 G Vario - 230 V Center lathe
- Standard with 38 mm spindle bore for machining large shaft diameters
- Heavily ribbed prismatic bed with inductively hardened and ground bed guide
- Ideally suited for processing steel, non-ferrous materials and plastics
- Versatile use: longitudinal turning, facing, boring, thread cutting, ...
- Standard with change gears for cutting metric threads
- Main spindle with adjustable taper roller bearings in P5 quality
- User-friendly arrangement of the shift elements on the transmission head
- Tailstock with single lever clamping, adjustable for taper turning
- Guides on the carriage can be adjusted by means of wedge strips
- Delta frequency converter as standard for high torque in the lower speed range and almost constant speed under load
Scope of delivery

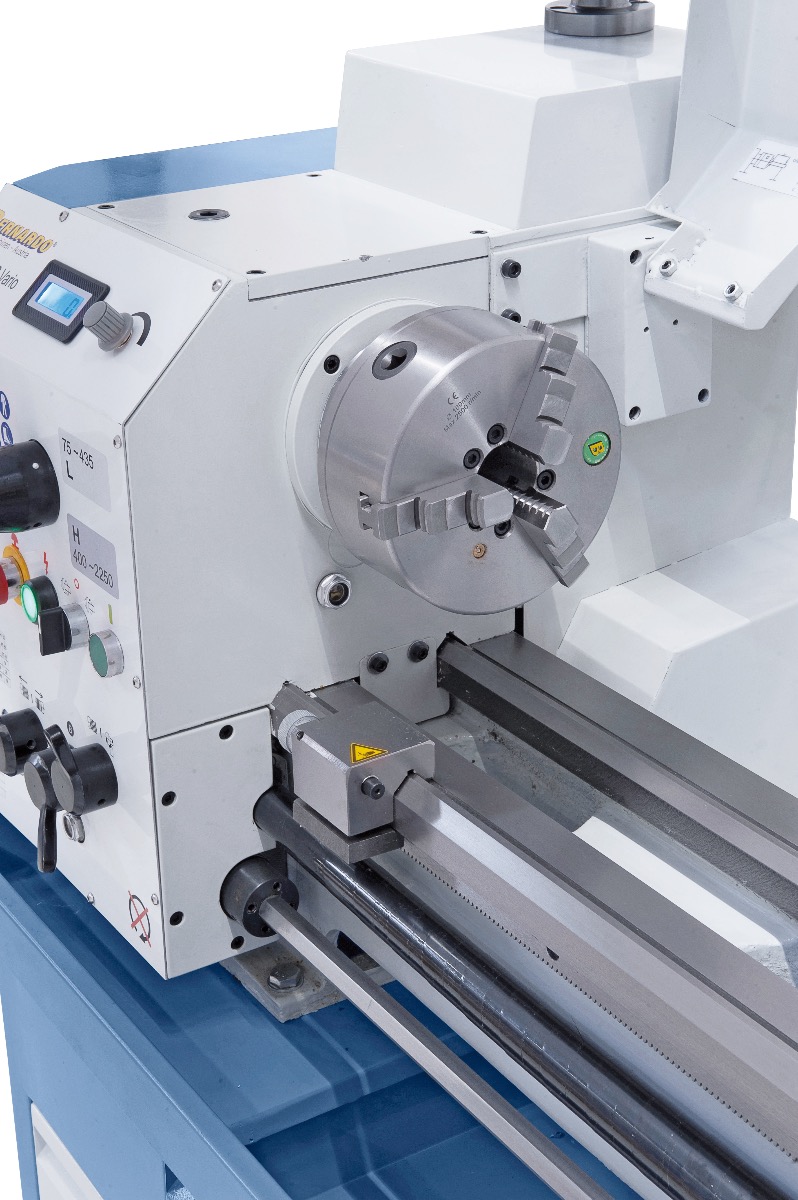

- 3-jaw chuck DK11-160 mm / D4
- Solid grain tips
- Change gears
- Quadruple tool holder
- Friction clutch
- Micrometer length stop
- Cross slide with upper support
- Frequency Inverter
- Digital speed display
- Thread gauge
- LED machine light

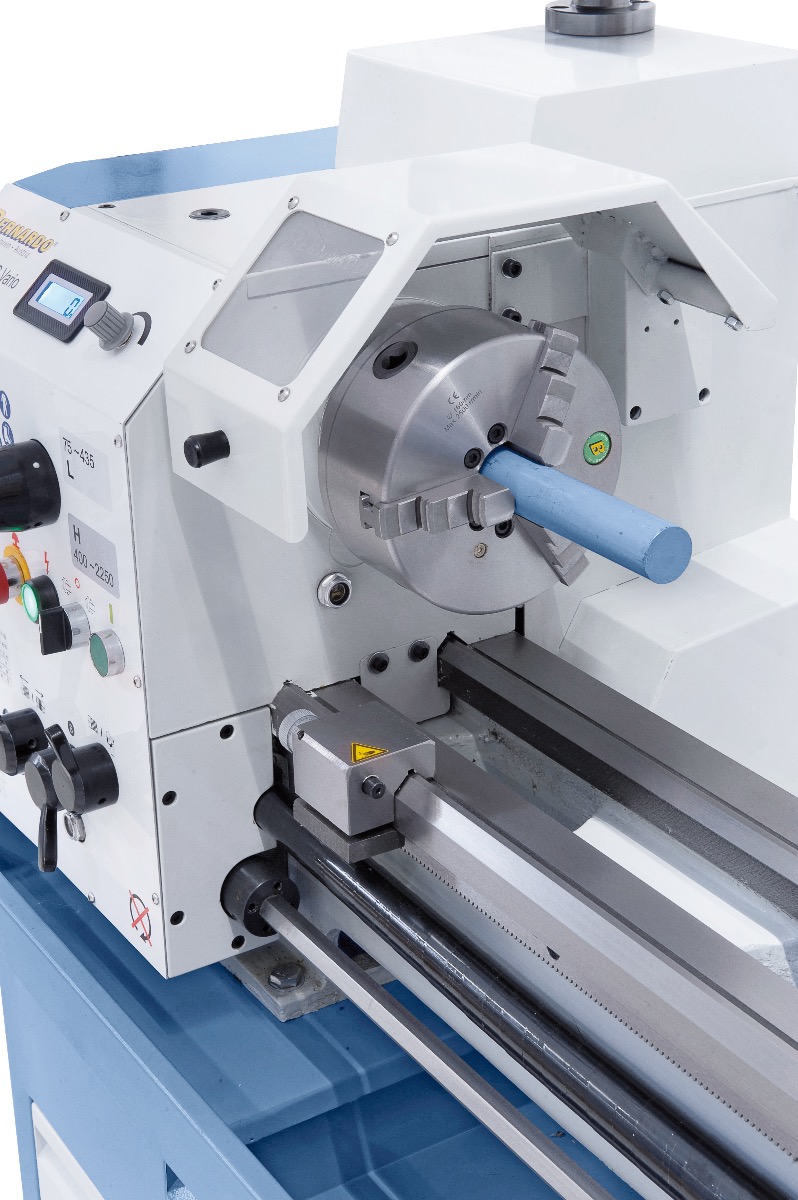

- chuck protection
- Chip back panel
- Spindle cover
- Operating tool
Technical data Bernardo Profi 880 G Vario - 230 V Center lathe
|
Top of the range
|
880 mm
|
|
Centre height
|
160 mm
|
|
swing over bed
|
320 mm
|
|
Spindle bore
|
38 mm
|
|
Mounting in the spindle bore
|
DIN 55029, D1-4
|
|
Speed range, infinitely variable
|
75 - 435 / 400 - 2250 rpm
|
|
Range longitudinal feeds
|
(15) 0.07 - 1.0 mm/rev
|
|
Plan feeds range
|
(15) 0.017 - 0.25 mm/rev
|
|
Metric threads
|
(18) 0.2 - 3.5 mm
|
|
inch thread
|
(21) 8 - 56 Gg/1
|
|
quill path
|
100 mm
|
|
quill mount
|
MK 3
|
|
Motor output power S1 100%
|
1.5 KW / 230 V
|
|
Motor input power S6 40%
|
2.2 kW / 230 V
|
|
Machine dimensions (W x D x H)*
|
1660 x 650 x 570 mm
|
|
Weight approx.
|
255 kg
|
|
* without base frame
|
