The Profi 600 G lathe is equipped as standard with a leading and traction spindle for thread cutting or for automatic longitudinal and cross feed. The 12-step manual gearbox allows a quick adjustment of the speeds - no V-belt change necessary. Due to its compact design and the high dead weight, this machine offers very quiet running and thus guarantees precise work.
Features Bernardo Profi 600 G 230 V lathe incl. 2-axis digital display

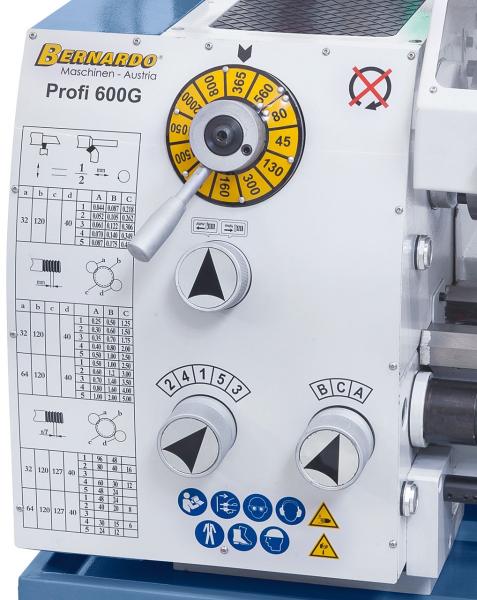

- Simple and fast speed change due to manual gearbox
- High concentricity of the spindle nose (≤ 0.009 mm) due to precision taper roller bearings
- Powerful drive motor for high torque, speed range 45 - 2000 rpm
- Versatile application possibilities: Precision mechanics, training and apprenticeship workshops, ...
- The feed adjustment is simple, smooth and precise
- Solid machine bed with inductively hardened and ground bed guides
- Ideally suited for processing steel, non-ferrous materials and plastics
- Standard with feed spindle for automatic longitudinal and cross feed
- Carriage including hand wheels with fine scaling
Scope of delivery Bernardo Profi 600 G 230 V lathe incl. 2-axis digital display
- 2-axis digital display ES-12 V with LCD display
- 3-jaw chuck 125 mm
- Chuck flange 125 mm
- cross slide with upper support
- Solid grain tips
- Thread gauge
- Change gears
- Quadruple tool holder
- LED machine lamp
- Feed protection
- Chip rear wall
- Lead screw cover
- Operating tool
Technical data Bernardo Profi 600 G 230 V lathe incl. 2-axis digital display
|
Top of the range
|
600 mm
|
|
Centre height
|
140 mm
|
|
Swing diameter over bed
|
280 mm
|
|
Bed width
|
150 mm
|
|
Spindle bore
|
26 mm
|
|
Mounting in the spindle bore
|
MK 4
|
|
Speed range
|
(12) 45 - 2000 rpm
|
|
Range longitudinal feeds
|
0.044 - 0.437 mm/rev
|
|
Flat feeds area
|
0.022 - 0.218 mm/rev
|
|
Metric threads
|
(30) 0,25 - 5 mm
|
|
inch thread
|
(20) 6 - 96 Gg/1“
|
|
quill path
|
110 mm
|
|
quill mount
|
MK 2
|
|
Motor output power S1 100%
|
0,75 kW / 230 V
|
|
Motor input power S6 40%
|
1,0 kW / 230 V
|
|
Machine dimensions (W x D x H)*
|
1220 x 700 x 500 mm
|
|
Weight approx.
|
220 kg
|
