Bernardo Pneumatic Thread Cutting Machine TM 16 P / R 1500

Product No.:
01-14140
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
23 kg per piece
1.853,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Product Highlights Bernardo Pneumatic Tapping Machine TM 16 P / R 1500​

  • High productivity, significant time saving compared to manual tapping.
  • Higher accuracy compared to manual tapping, thread is guaranteed right-angled (90°)
  • Including swivel arm with large radius for easy positioning of the tap on the workpiece
  • Swivelling motor unit for tapping at any desired angle between 0° and 90
  • High economic efficiency due to low investment and maintenance costs
  • Including quick-change chuck for using taps for through and blind holes
  • For tapping in steel, stainless steel, aluminium and non-ferrous metals
  • Quick-change chuck with integrated slip clutch prevents tap breakage

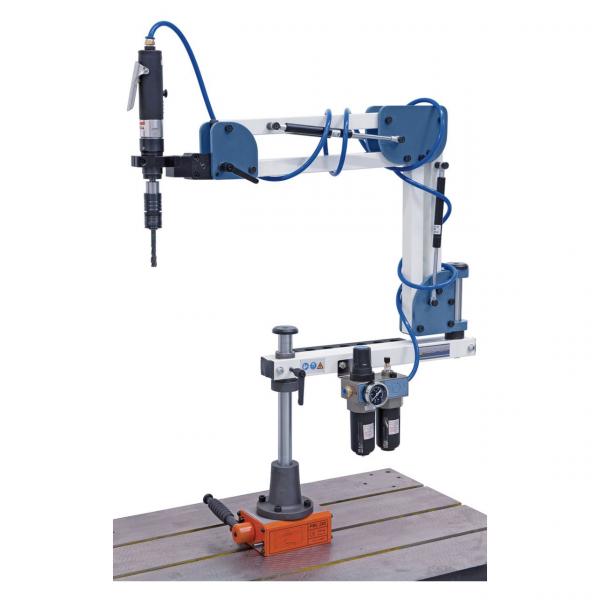

  • Optionally available magnetic foot for direct use on large and heavy workpieces

Scope of delivery Bernardo Pneumatic Thread Cutting Machine TM 16 P / R 1500​

  • Quick-change chuck
  • Quick-change chuck according to DIN

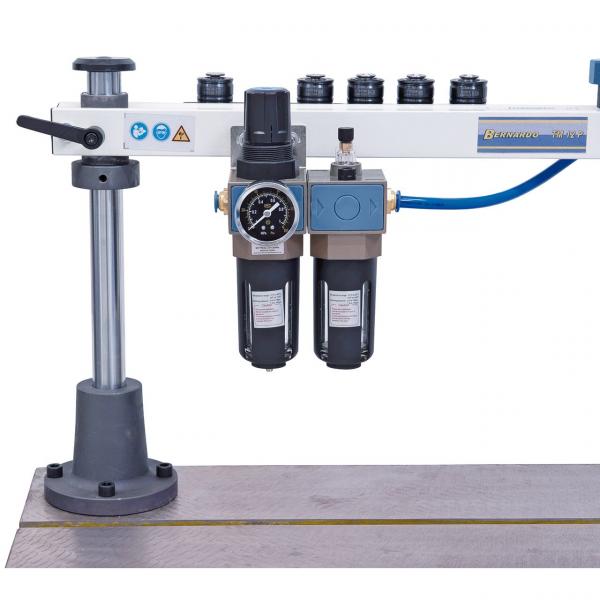

  • Pressure reducing valve and moisture separator
  • Pneumatic motor
  • 90° angle adjustment
  • Mounting flange

Technical Data Bernardo Pneumatic Tapping Machine TM 16 P / R 1500​

Threaded holes*

M3 - M16

Speed

400 rpm

Adjustable angle

0° - 90°

Max. Working radius

R 1500 mm

Air pressure

6 - 8 bar

Quick-change chuck

DIN 371: M3 / M4  / M5-6 / M8 / M10



DIN 376: M12 / M14 / M16

Weight approx.

23 kg

* Material strength 400 N / mm2
