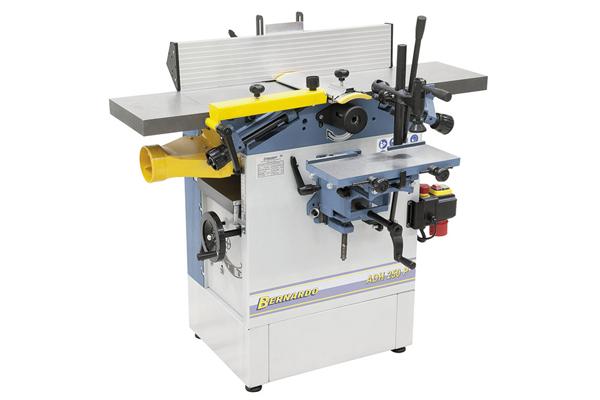

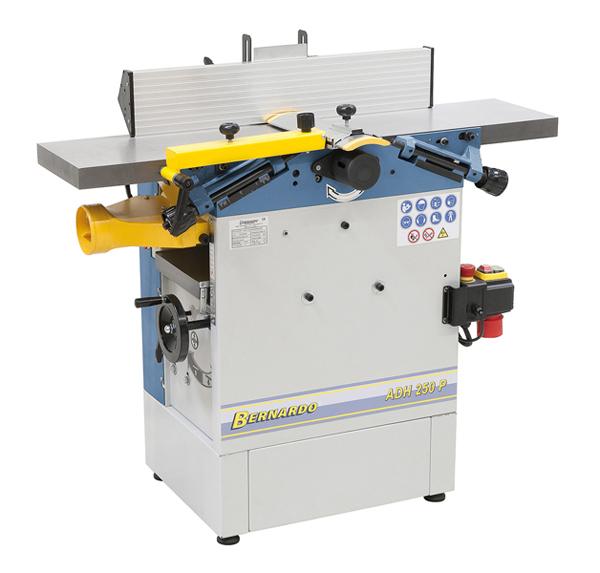

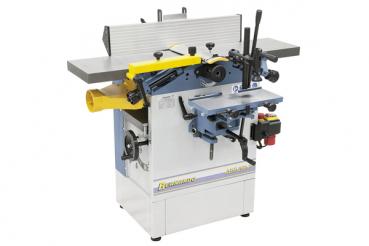

Bernardo planing machine ADH 250 P - 230 V
Properties Bernardo planing machine ADH 250 P - 230 V
- Both planing tables feature fi ne adjustment and are designed with slots to keep noise level down
- Easy setting of chip removal (max. 2,5 mm)
- Torsion-free planing tables made out of solid cast iron
- Integrated, tiltable dust hood, extraction outlet 100 mm
- Precisely bedded 3-knife cutterblock incl. HSS-cutter knives

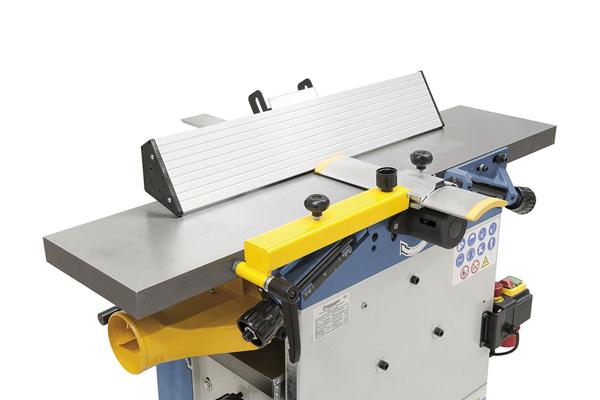

- Solid aluminium fence, tiltable from 90° to 45°
- Corrugated infeed rollers and rubber-coated outfeed rollers for optimal workpiece feed
- Workpiece infeed can be switched off when planing

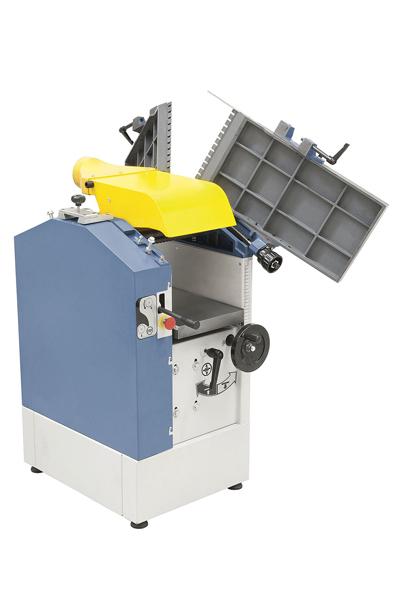

- Tables can be tilted upright to allow easy workpiece infeed when thicknessing
- Thicknessing table with center column and support guarantees precise thicknessing
- Perfect machine for planing of boards, planks, beams etc.
Standard accessories Bernardo planing machine ADH 250 P - 230 V:
- Cutter knives in HSS-quality
- Knife gauge
- 2 pcs. push handle
Technical specifications Bernardo planing machine ADH 250 P - 230 V:
| Planer |
|
| Planing width | 250 mm |
| Table length | 1090 mm |
| Table height | 830 mm |
| Shaft rotation speed | 4000 rpm |
| Cutter knives | 3 pcs. |
| Planer shaft diameter | 75 mm |
| Planer fence | 715 x 130 mm |
| Fence tiltable | 90° to 45° |
| Max. cutting depth | 5 mm |
| Thicknesser |
|
| Table length | 600 mm |
| Working width | 245 mm |
| Working thickness, min./max. | 5 - 185 mm |
| Max. cutting depth | 2,5 mm |
| Feed speed | 4,8 m/min |
| Dust extraction outlet | 100 mm |
| Motor power output S1 100% | 1,5 kW (2,0 HP) |
| Motor power input S6 40% | 2,1 kW (2,8 HP) |
| Voltage | 400 V |
| Machine dimension (L x W x H) | 1100 x 750 x 1010 mm |
| Weight approx. | 148 kg |
