Bernardo planing machine AD 410 - 400 V
Properties Bernardo planing machine AD 410 - 400 V
- Planing tables tilt to the back of the machine to keep space requirements to a minimum
- Precisely bedded, smooth running 4-knife cutterblock guarantees optimal results
- Integrated, tiltable dust hood, extraction outlet 100 mm
- Simultaneous tilting of planing tables to achieve maximum comfort
- Thicknessing table feed can be switched off when planing
- Hard-anodized aluminium planing fence, tiltable from 90° to 45°

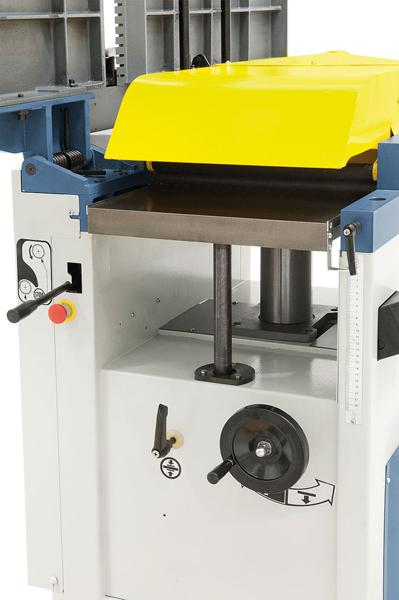

- Thicknessing table with central column and support allow precise planing
- Torsion-free, cast iron planing tables guarantees best results
- Numerous safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start,...
Standard accessories Bernardo planing machine AD 410 - 400 V:
- Cutter knives in HSS-quality
- Knife gauge
- Push handle
![semi-prof.png](https://www.bernardo.at/pub/static/frontend/SIWA/PWA/en_GB/images/semi-prof.png)
Technical specifications Bernardo planing machine AD 410 - 400 V:
Planer |
|
Planing width | 410 mm |
Table length | 1685 mm |
Table height | 920 mm |
Shaft rotation speed | 4300 rpm |
Cutter knives | 4 pcs. |
Planer shaft diameter | 95 mm |
Planer fence | 1110 x 150 mm |
Fence tiltable | 90° to 45° |
Max. cutting depth | 3 mm |
Thicknesser |
|
Table length | 750 mm |
Working width | 410 mm |
Working thickness, min./max. | 4 - 220 mm |
Max. cutting depth | 5 mm |
Feed speed | 6 m/min |
|
|
Dust extraction outlet | 100 mm |
Motor power output S1 100% | 3,0 kW (4,0 HP) |
Motor power input S6 40% | 4,2 kW (5,7 HP) |
Voltage | 400 V |
Machine dimension (L x W x H) | 1685 x 1045 x 1100 mm |
Weight approx. | 340 kg |
