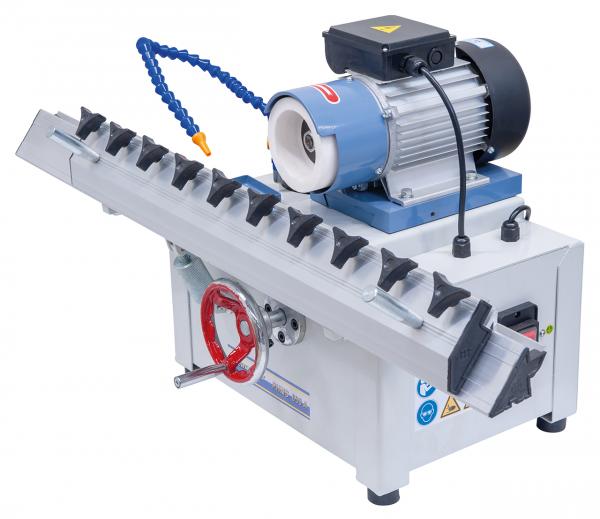

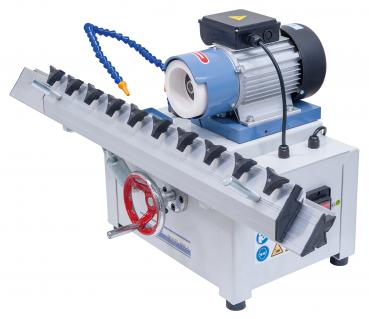

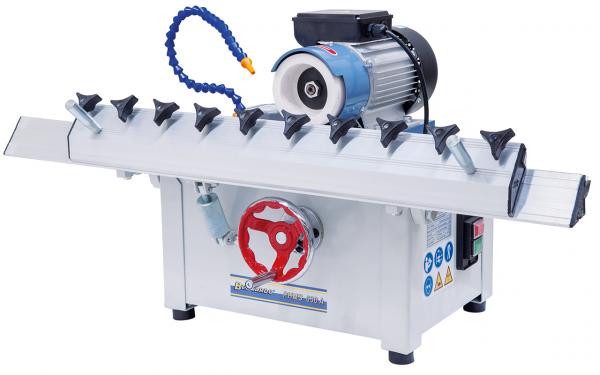

Product features Bernardo PHMS 630A planing knife grinding machine
The PHMS 630 A planing knife grinding machine can be used for grinding planing knives up to 640 mm. The efficient and economical operation, as well as the cost and time savings resulting from self sharpening, convince every user.

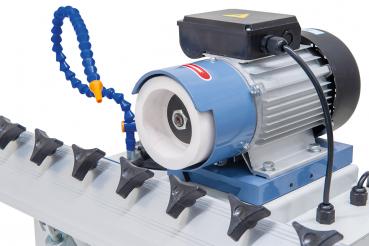

- Vibration-free driven grinding wheel for optimum grinding results
- Precise planing knife holder made of solid aluminium
- Designed for grinding planer knives up to 640 mm long

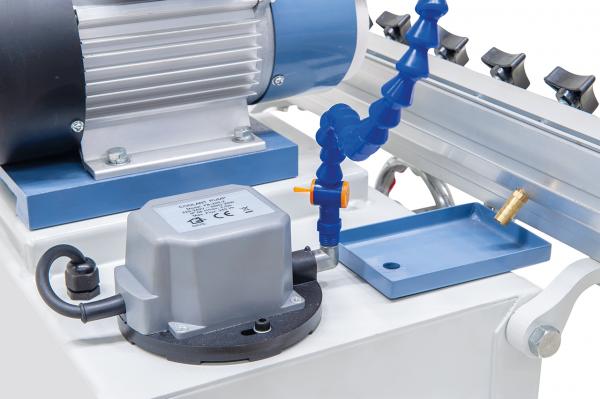

- Equipped with coolant system as standard

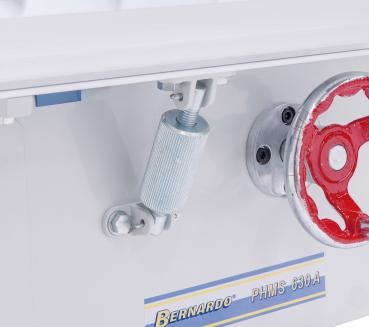

- Adjustment of the grinding angle at the front of the machine
- Swivelling guide rail from 23° to 55
Scope of delivery Bernardo PHMS 630A planing knife grinding machine
- Grinding wheel
- Planer blade holder
- Coolant device
Technical data Bernardo PHMS 630A planing knife grinding machine
- Grinding wheel: 100 x 50 x 20 mm
- Grinding wheel speed: 2800 rpm
- Max. Planer blade length: 640 mm
- Swivel range of guide rail: 23° - 55
- Motor output power S1 100%: 0.55 kW (0.75 PS)
- Motor input power S6 40%: 0.75 kW (1.0 hp)
- Voltage: 230 V
- Machine dimensions (W x D x H): 870 x 420 x 460 mm
- Weight approx.: 29 kg
