Bernardo planing knife grinding machine HMS 600
Properties Bernardo planing knife grinding machine HMS 600
- Suitable for grinding of cutter knives, carving knives, drill bits etc.
- Allows simultaneous grinding of two cutter knives of 310 mm each which halves time consumption (significant difference when grinding 4-knife cutterblock)
- Grinding wheel runs free from vibrations for optimal grinding results
- Precise cutter knife holder made from solid grey cast-iron
- Tiltable guide rail from 20° to 90°
- Handwheel on front of machine allows for adjustment of grinding angle

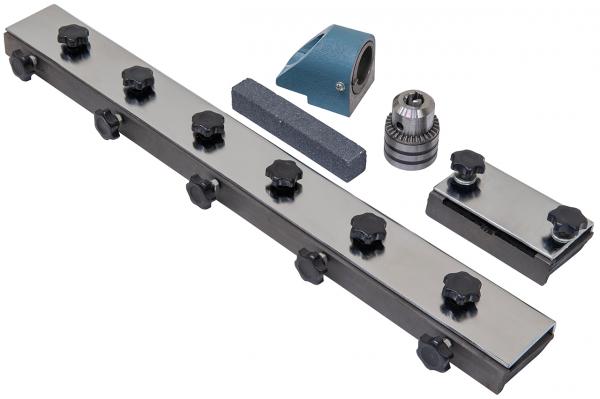

Standard accessories Bernardo planing knife grinding machine HMS 600:
- Grinding wheel
- Knife lock plate
- Tool clamp 12 cm
- Drill chuck with turnable bushing
- Dressing stone
Technical specifications Bernardo planing knife grinding machine HMS 600:
| Grinding wheel | 150 x 40 x 12,7 mm |
| Speed | 2800 rpm |
| Max. cutter knife length | 620 mm |
| Tilting range guide rail | 20° - 90° |
| Table height adjustment | 30 mm |
| Motor power output S1 100% | 0,36 kW (0,50 HP) |
| Motor power input S6 40% | 0,50 kW (0,70 HP) |
| Voltage | 230 V |
| Machine dimension (W x D x H) | 620 x 330 x 350 mm |
| Weight approx. | 36 kg |
