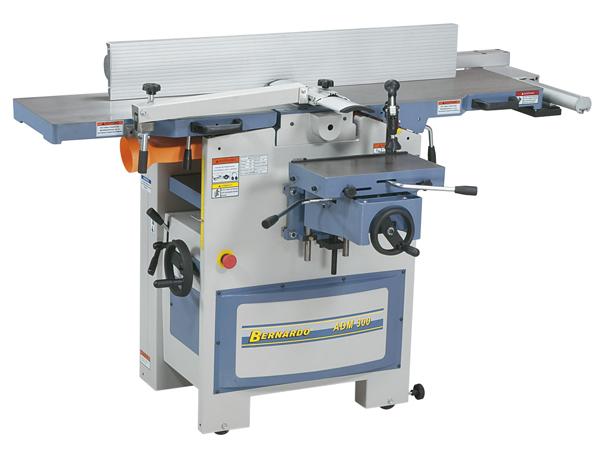

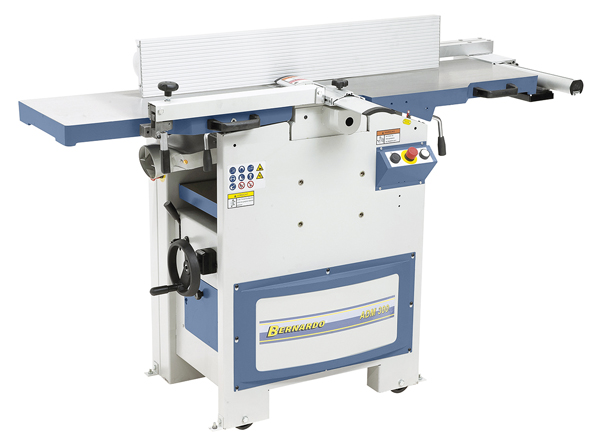

Properties Bernardo planing and thicknessing machine ADM 300

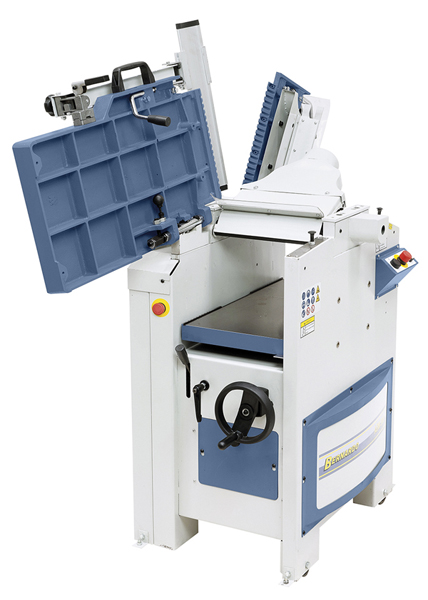

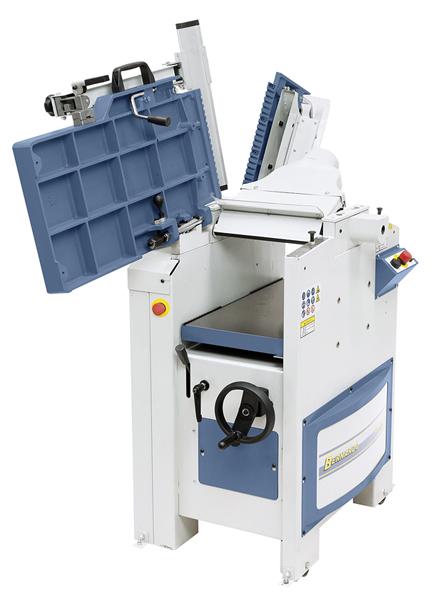

- Folding planing tables for quick conversion to thicknessing
- Integrated tiltable dust hood, extraction outlet 100 mm
- Both planing tables feature fi ne adjustment and noise absorbing table lips
- Maintenance-free 4-knife cutterblock with 18% quality HSS- knives
- Spiral toothed infeed roller for safe and consistent workpiece infeed
- Thicknessing table with central column and support for a high level of accuracy
- Planing fence positioned to side of machine, allowing machine to be flush with wall
- Serially equipped with knife gauge to ensure precise adjustment of cutter knives
- Powerful, high performance motor
Standard accessories Bernardo planing and thicknessing machine ADM 300:
- Cutter knives in HSS-quality
- Knife gauge
- Integrated carriage
- Push handle
Technical specifications Bernardo planing and thicknessing machine ADM 300:
|
Planer |
|
|
Planing width |
305 mm |
|
Table length |
1510 mm |
|
Table height |
915 mm |
|
Shaft rotation speed |
5500 rpm |
|
Cutter knives |
4 pcs. |
|
Planer shaft diameter |
78 mm |
|
Planer fence |
1105 x 155 mm |
|
Fence tiltable |
90° to 45° |
|
Max. cutting depth |
3 mm |
|
Thicknesser |
|
|
Table length |
585 mm |
|
Working width |
300 mm |
|
Working thickness, min./max. |
3 - 220 mm |
|
Max. cutting depth |
3 mm |
|
Feed speed |
6,6 m/min |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
3,0 kW (4,0 HP) |
|
Motor power input S6 40% |
4,2 kW (5,7 HP) |
|
Voltage |
400 V |
|
Machine dimension (L x W x H) |
1700 x 790 x 1080 mm |
|
Weight approx. |
280 kg |
