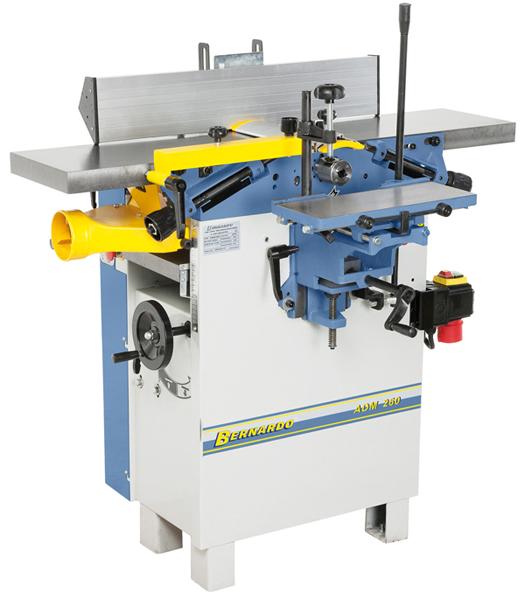

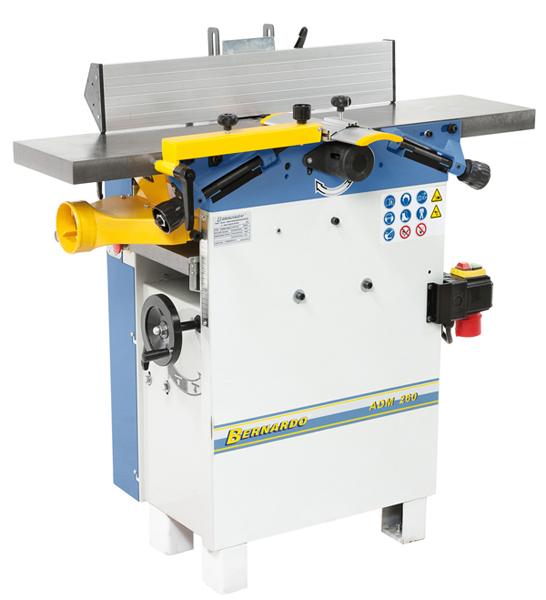

Properties Bernardo planing and thicknessing machine ADM 260 - 400 V
- Switch-plug-combination with motor brake as standard

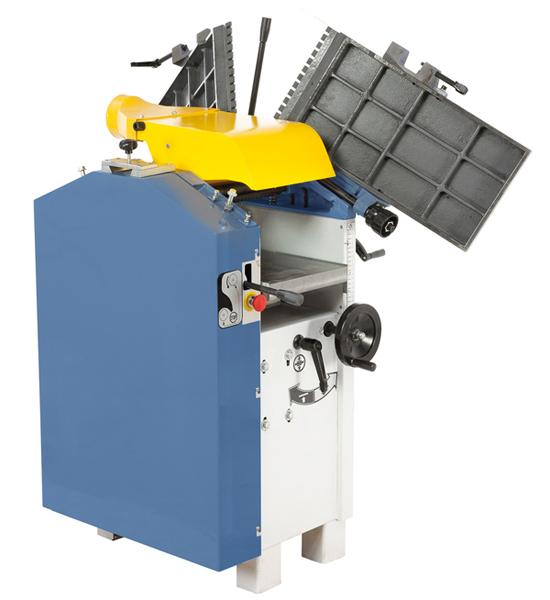

- Folding planer tables allow quick and easy conversion from planing to thicknessing
- Integrated, tiltable dust hood, extraction outlet 100 mm
- Both planing tables feature fine adjustment and are designed with table lips to keep noise level down

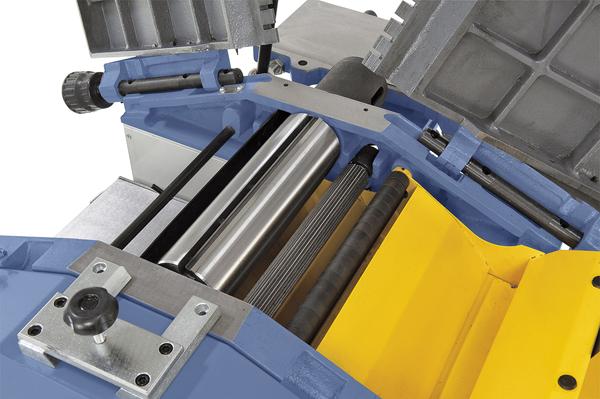

- Maintenance-free 3-knife cutterblock with HSS 18% quality cutter knives
- Thicknessing table with central column and support allow precise planing
- The solid planer fence with prism guide can be tilted from 90° to 45°
- Torsion-free, cast iron planing tables guarantees best results
- Cutterblock cover according to CE-standards ensure safety
- Infeed can be switched off when planning
Standard accessories Bernardo planing and thicknessing machine ADM 260 - 400 V:
- Cutter knives in HSS-quality
- Knife gauge
- Switch-plug combination
- Push handle
Technical specifications Bernardo planing and thicknessing machine ADM 260 - 400 V:
|
Planer |
|
|
Planing width |
250 mm |
|
Table length |
1080 mm |
|
Table height |
920 mm |
|
Shaft rotation speed |
3750 rpm |
|
Cutter knives |
3 pcs. |
|
Planer shaft diameter |
75 mm |
|
Planer fence |
700 x 145 mm |
|
Fence tiltable |
90° to 45° |
|
Max. cutting depth |
5 mm |
|
Thicknesser |
|
|
Table length |
600 mm |
|
Working width |
250 mm |
|
Working thickness, min./max. |
5 - 190 mm |
|
Max. cutting depth |
1,8 mm |
|
Feed speed |
8 m/min |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
2,0 kW (2,7 HP) |
|
Motor power input S6 40% |
2,8 kW (3,8 HP) |
|
Voltage |
400 V |
|
Machine dimension (L x W x H) |
1100 x 750 x 1110 mm |
|
Weight approx. |
160 kg |
