Properties Bernardo PFR 01/500/.. Protective device for milling machine
- Classical universal protection device with articulated arms
- The model protects the operator from direct contact with the vertical spindle and flying chips or coolant splashes
- Mountable on the machine stand, equipped with a semicircular protection screen with double opening system:
- 1 = the protection screen can be opened horizontally around its axis
- 2 = complete swinging out of the protective screen from the working environment
- Equipped with double safety microswitch
Available accessories:
- PMG 60/185
- PBA 01/190
- PBA 01/325
- PBA 02/325
Note: Describe the mounting side with the addition: /SX = Left or /DX = Right
Technical data Bernardo PFR 01/500/.. Protective device for milling machine
|
A
|
B
|
Weight
|
|
500
|
235
|
10.1 kg
|

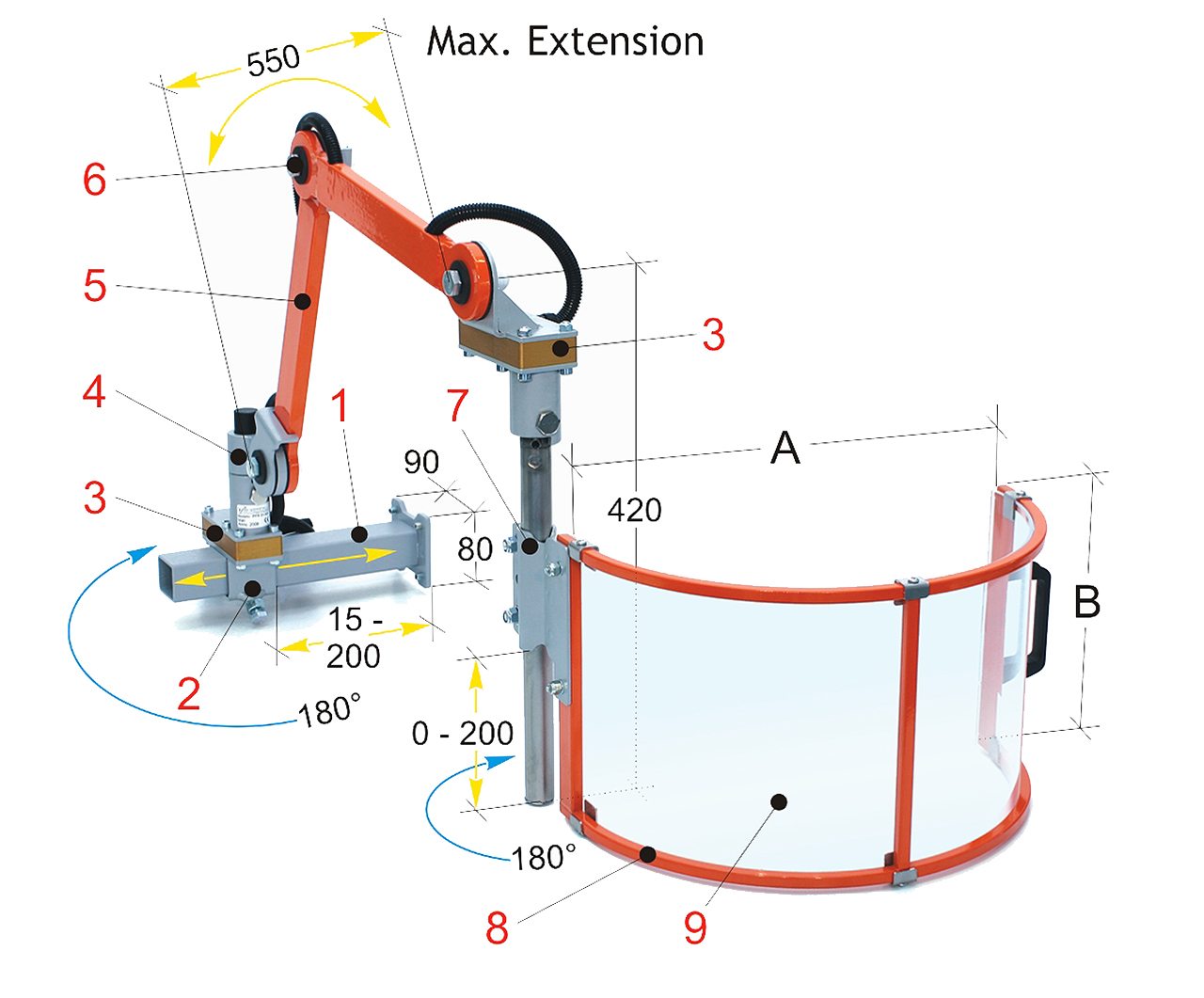

1 bracket/mounting plate made of steel tube
2 Depth-adjustable support for the safety guard
3 housings for the safety microswitches, 180° rotatable, 2 opening contacts
4 Horizontal adjustment clamp
5 Steel tube articulated arm
6 Joint adjustable by friction disc
7 Clamp for fastening the protective hood to the steel pipe
8 Protective frame made of tubular steel
9 Hot formed protective screen made of shockproof and oil resistant plastic material
