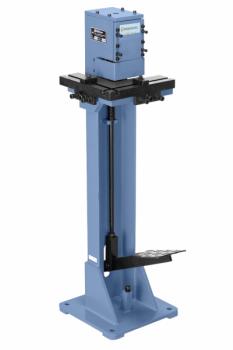

Bernardo Notching machine AK 80 F
Properties Bernardo Notching machine AK 80 F
- Compact notching machine, serially with stand
- Power is transmitted to the workpiece by foot pedal
- For notching up to max. 80 x 80 mm, cutting angle 90 °
- Durable precision by re-adjustable guides
- Notch with burr-free cut, without deformation of the cutting edges
- For rational working, standard with adjustable stops
- Cuttings blade made of surface hardened tool steel
Standard accessories Bernardo Notching machine AK 80 F
- 1 set cutting knives
- 2 material fence
- Protective cover
- Foot pedal
- Stand
Technical specifications
|
Sheet thickness max. (400 N / mm2) |
1,5 mm |
|
Max. cutting length at 90° |
80 x 80 mm |
|
Cutting angle |
90° |
|
Stroke |
30 mm |
|
Table size |
260 x 260 mm |
|
Width |
320 mm |
|
Depth |
400 mm |
|
Height |
1050 mm |
|
Weight approx. |
74 kg |
