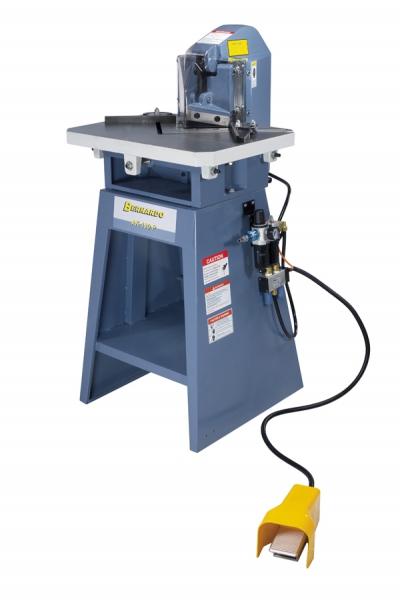

Bernardo Notching machine AK 130 P
Properties Bernardo Notching machine AK 130 P
- Notch with burr-free cut, without deformation of the cutting edges
- Machine body made of high quality cast iron, base made of sheet steel
- Cuttings blade made of surface hardened tool steel

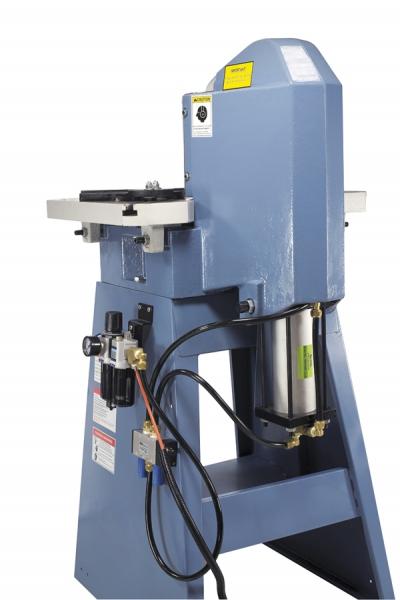

- Effort-saving work by pneumatic drive
- Operation by foot pedal, therefore both hands free for the workpiece

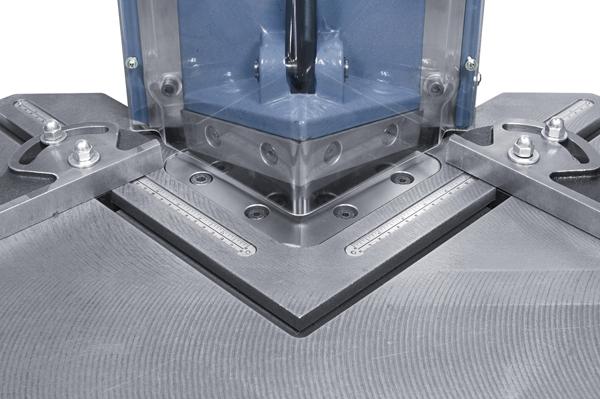

- Large-sized working table with integrated scales
- T-slots for exact guidance of the tiltable stops

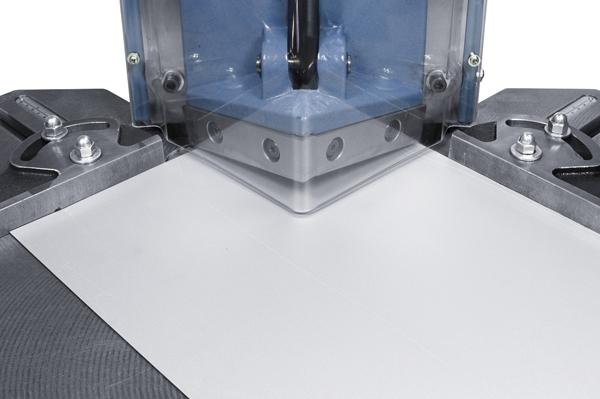

- Protective cover in front of the cutting knives for high safety
Standard accessories Bernardo Notching machine AK 130 P
- 1 set cutting knives
- 2 tiltable material fence
- Plexiglas protective cover
- Foot pedal
- Angle gauge
- Stand
Technical specifications Bernardo Notching machine AK 130 P
|
Sheet thickness max. (400 N / mm2) |
3,0 mm |
|
Sheet thickness max. (600 N / mm2) * |
1,5 mm |
|
Max. cutting length at 90° |
130 x 130 mm |
|
Cutting angle |
90° |
|
Max. cuting pressure |
2,2 t |
|
Strokes / min |
50 |
|
Table size |
600 x 460 mm |
|
Width |
630 mm |
|
Depth |
670 mm |
|
Height |
1260 mm |
|
Weight approx. |
160 kg |
|
* Values for stainless steel, only possible with optional knife set |
|
