Bernardo NC machine vice CHV 130 V

Properties
  •
  • Suitable for use on machining centres, in tool, jig and mould making
  • the sturdy base body made of injection moulding is hardened and ground
  • Mechanical / hydraulic clamping system via hand crank
  • Can be used horizontally, laterally and vertically
  • Alignment on the table via cross groove, lengthwise on request
  • Spindle protected against dirt and chips
  • Integrated pull-down mechanism prevents the moving jaw from lifting and the workpiece from tilting
  • High and safe clamping force with little physical effort
  • Long flat track guide of the movable jaw
  • Various special jaws available
  • the overall length of the clamp remains the same even with large workpieces
  • Special design on request: grooves and fixing holes, .......

Technical Data


A

540 mm

B

405 mm

C

135 mm

D

131 mm

E

147 mm

F

150 mm

G

70 mm

H

15 mm

I

115 mm

J

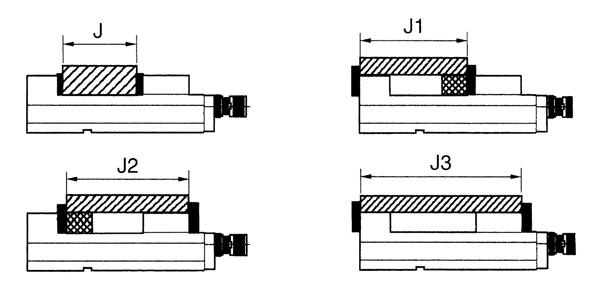

0 - 180 mm

J1

180 - 240 mm

J2

180 - 290 mm

J3

180 - 380 mm

K

55 mm

L

22 mm

M

125 mm

N

18 mm

P

14 mm

X

65 mm

Y

95 mm

Max. clamping force

4500 kg

Weight ca.

40 kg
