Bernardo NC machine vice CHV 100 V

Properties
  •
  • Suitable for use on machining centres, in tool, jig and mould making
  • the sturdy base body made of injection moulding is hardened and ground
  • Mechanical / hydraulic clamping system via hand crank
  • Can be used horizontally, laterally and vertically
  • Alignment on the table via cross groove, lengthwise on request
  • Spindle protected against dirt and chips
  • Integrated pull-down mechanism prevents the moving jaw from lifting and the workpiece from tilting
  • High and safe clamping force with little physical effort
  • Long flat track guide of the movable jaw
  • Various special jaws available
  • the overall length of the clamp remains the same even with large workpieces
  • Special design on request: grooves and fixing holes, .......

Technical Data

A

475 mm

B

340 mm

C

135 mm

D

101 mm

E

130 mm

F

133 mm

G

65 mm

H

15 mm

I

105 mm

J

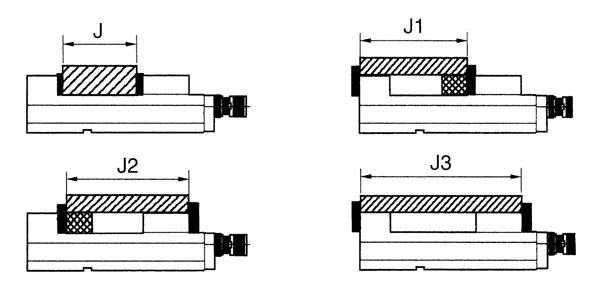

0 - 125 mm

J1

125 - 190 mm

J2

125 - 230 mm

J3

125 - 320 mm

K

48 mm

L

22 mm

M

125 mm

N

16 mm

P

14 mm

X

45 mm

Y

85 mm

Max. clamping force

3500 kg

Weight ca.

27 kg
