The large number of mill head adjustments makes these robust and stable universal milling machines ideal for dilling and milling simple to difficult workpieces in single part production, repair shop, training etc.

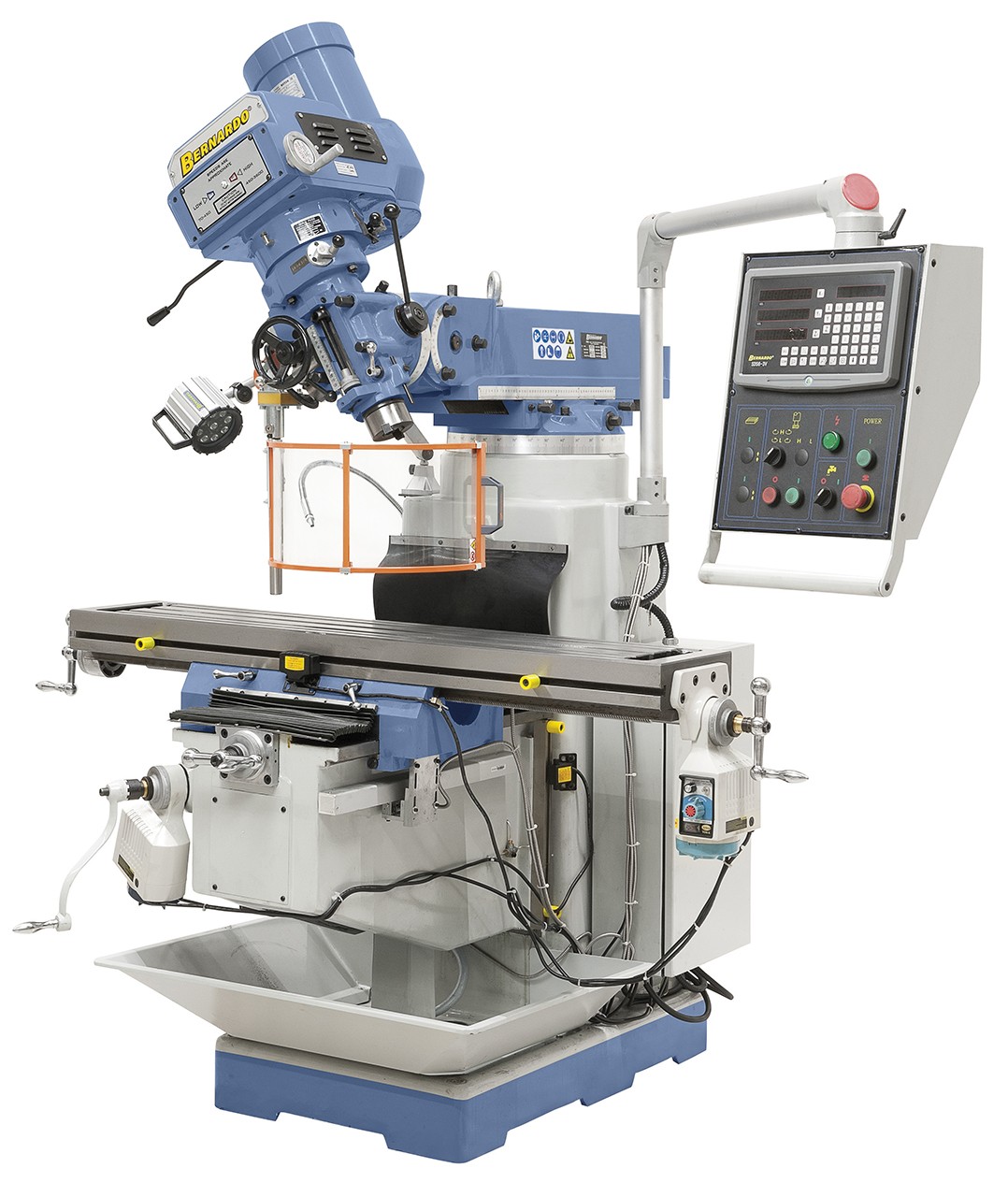

Features Bernardo Multi-Purpose Milling Machine MFM 250 Super
- Work table features large clamping area, surface hardened and polished
- Steplessly adjustable spindle speed with mechanic spindle brake

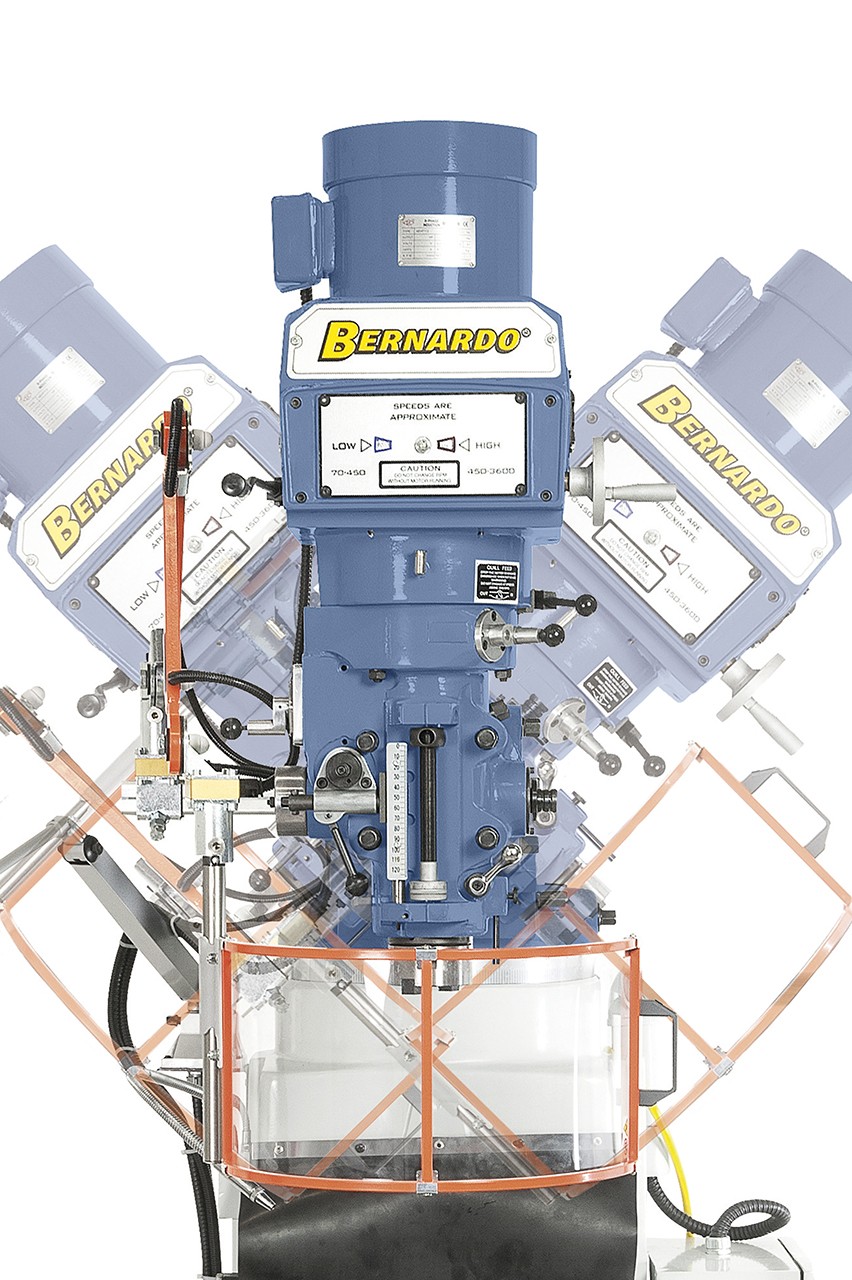

- Universal mill head can be turned, tilted and swivelled
- Hardened and polished guideways in all axis
- 3 automatic spindle feeds come standard
- Spindle is chromium plated and features micrometer depth stop
- Powerful coolant device included in machine base
Standard accessories Bernardo Multi-Purpose Milling Machine MFM 250 Super
- 3-axis digital readout ES-12 H with LCD-display
- Drawbar M 16
- Coolant device
- LED machine light

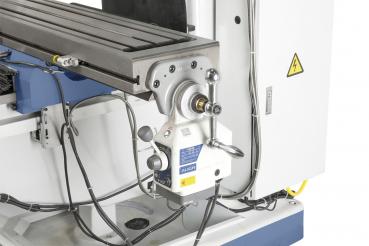

- Power feed for x-, y- and z-axis
- Central lubrication
- Adjustable protective device
- Coolant tray
Technical specifications Bernardo Multi-Purpose Milling Machine MFM 250 Super
|
Table size |
1370 x 254 mm |
|
Spindle taper |
ISO 40 |
|
Spindle speed, stepless |
60 - 4200 rpm |
|
Spindle feed |
0,038 / 0,076 / 0,152 mm/rev. |
|
Spindle stroke |
125 mm |
|
Travel longitudinal (x) |
800 mm |
|
Travel cross (y) |
410 mm |
|
Travel vertical (z) |
330 mm |
|
Distance spindle to column |
70 - 540 mm |
|
Head tilting range |
-90° to +90° |
|
Mill head swivel range |
-45° to +45° |
|
Distance spindle to table |
80 - 360 mm |
|
T-slot size |
16 mm |
|
Motor power |
2,2 kW |
|
Machine dimension (W x D x H) |
1800 x 2000 x 2240 mm |
|
Weight approx. |
1255 kg |
