Bernardo MTA 1560 x 3 mm NCC Motor-driven guillotine shear

Product No.:
06-1947XL
on request on request (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
1375 kg per piece
14.160,54 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Features Bernardo MTA 1560 x 3 mm NCC Motor-driven guillotine shear

  • Equipped as standard with sheet metal holding device, ideal for thin sheets
  • Support arms at the front for easy processing of large panels

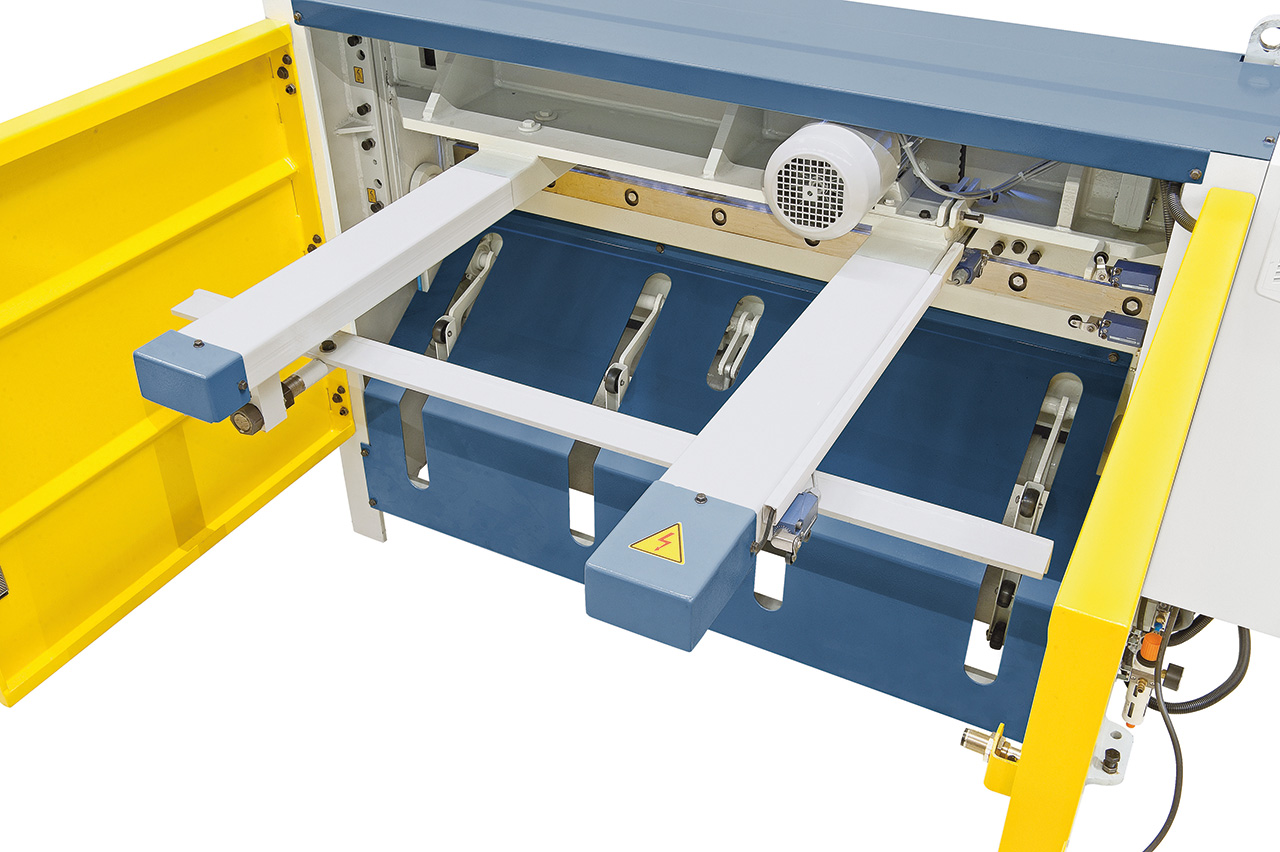

  • Motorized backgauge, precise traverse via recirculating ball screws
  • Clearly arranged operating panel with integrated control
  • Robust sheet steel construction for vibration-free operation

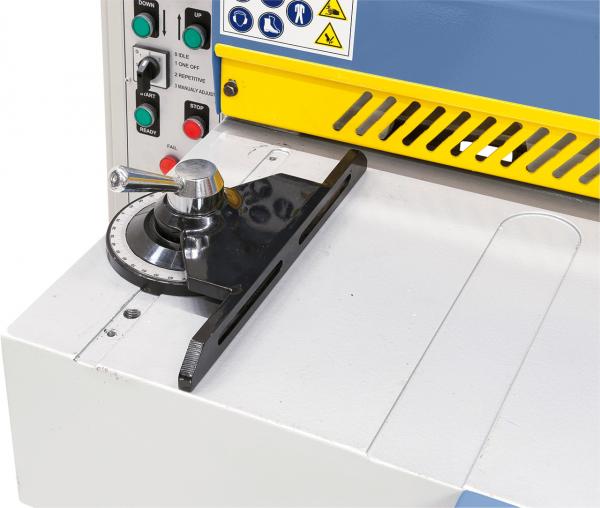

  • Support table with right-angled stop on both sides
  • High operator safety due to protective cover and photocells at the rear of the machine
  • 2-blade cutting blades made of quality steel guarantee clean and gravel-free cutting
  • Automatically acting hold-down device for fixing the sheet metal
Scope of delivery
  • Section line lighting
  • Motorized NC backgauge
  • Front sheet supports
  • Lateral stops
  • Mudguard with photocells
  • NC control BRL 401.2
  • Pneumatic sheet holding device
  • Foot pedal with emergency stop
  • Knives made of tool steel

Technical data Bernardo MTA 1560 x 3 mm NCC Motor-driven guillotine shear

Cutting length

1560 mm

Sheet thickness

3 mm

Cutting angle

2°30`

Strokes / min

35

Working heigth

805 mm

Backgauge

750 mm

Table width

455 mm

Engine power

3.0 kW

Width

2000 mm

Depth

2100 mm

Heigth

1200 mm

Weight approx.

1375 kg
