Bernardo MRC 2050 - 2,5 MD Rundbiegemaschine

Product No.:
06-1494XL3
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
1140 kg per piece
8.746,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

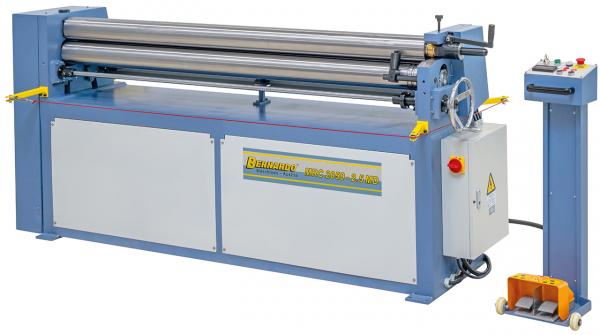

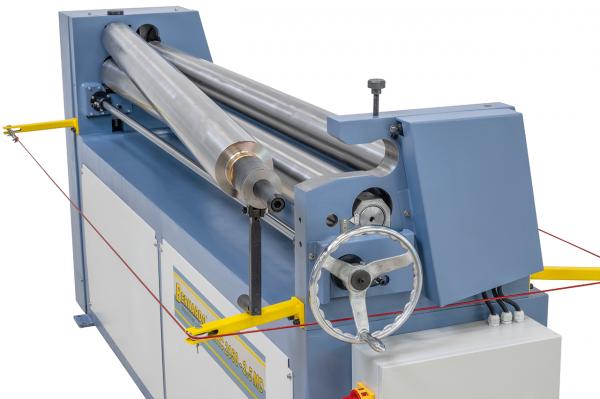

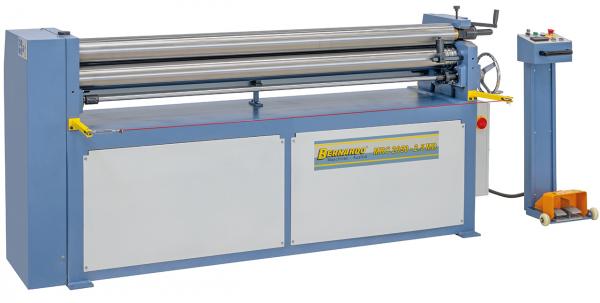

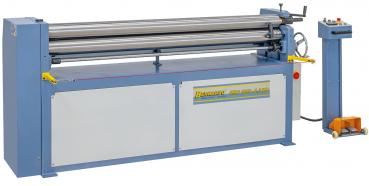

Product features Bernardo MRC 2050 - 2,5 MD round bending machine

  • Extremely robust sheet steel construction for precise work
  • Swivelling top roller for easy removal of the finished workpiece
  • Conical bending device included in the scope of delivery

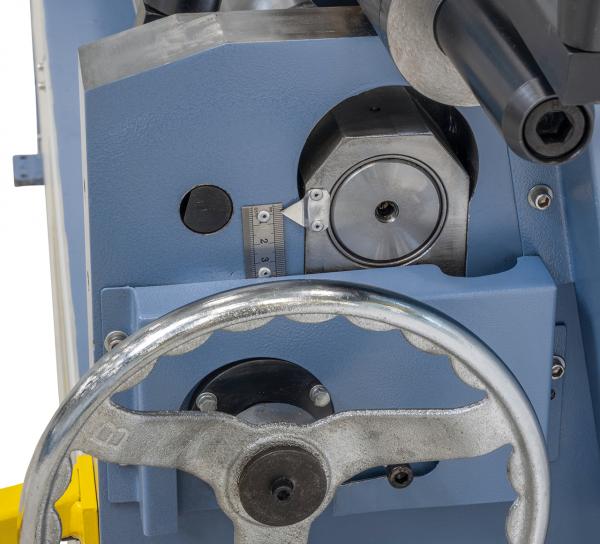

  • Bottom roller can be manually adjusted via handwheel

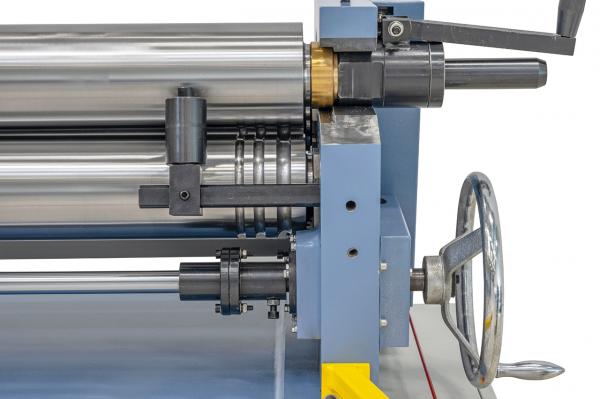

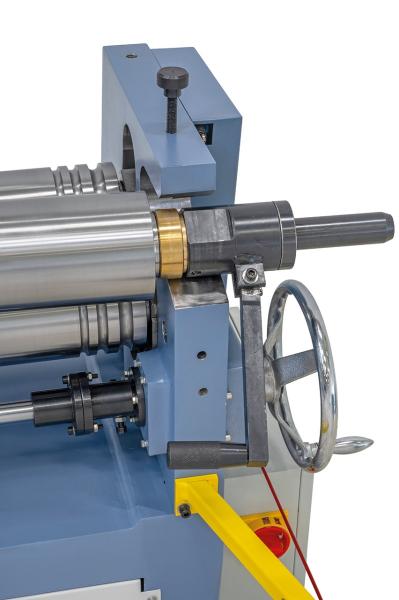

  • Fixed upper roller, adjustable lower and rear roller
  • Mobile foot switch for clockwise and anti-clockwise rotation and emergency stop function
  • For rolling steel, sheet metal, stainless steel and aluminium
  • Bending rollers made from high-quality steel

Scope of delivery Bernardo MRC 2050 - 2,5 MD round bending machine

  • Foot pedal with emergency stop
  • Conical bending device
  • Motorised infeed of the rear roller
  • Digital display

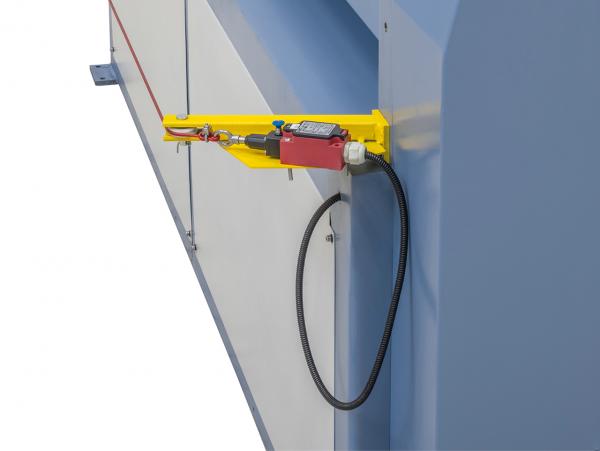

  • Safety device via line
  • Bottom and rear roller with wire insert grooves

Technical data Bernardo MRC 2050 - 2,5 MD round bending machine

Roller length 2050 mm
Max. Sheet thickness (400 N / mm2) 2,5 mm
Pre-bending 2,0 mm
Roller diameter 120 mm
Min. bending diameter 180 mm
Roller speed 10 rpm
Engine power 2,2 kW
Motor power rear roller 1,1 kW
Width 2600 mm
Depth 1040 mm
Height 1180 mm
Weight approx. 1140 kg
