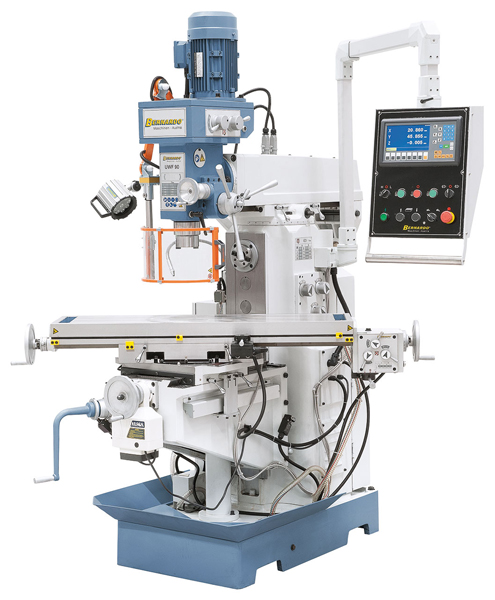

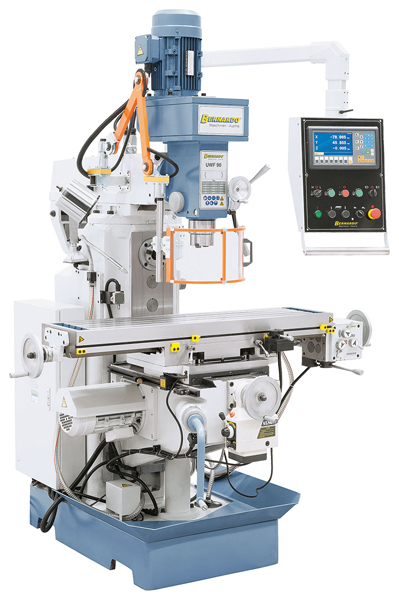

Bernardo milling machine UWF 90

The universal UWF 90 milling machine is serially equipped with an x- and y-axis feed. The table height (z-axis) is easily adjusted by the positioning motor. Due to the various areas of application and the comprehensive standard accessories, the machine is ideal for mechanical workshops, repair shops, engine construction etc.

Properties Bernardo milling machine UWF 90

• Complete with automatic table feed in x- and y-axis including rapid feed
• Surface treated, large table includes T-slots
• Heavy cast-iron machine stand eliminates vibrations
• Dovetail guiding in all three axes - adjustable by gibs
• Positioning motor for z-axis comes standard
• Wide speed and feed range
• Ideal for single and small-series production
• Tapered roller bearings ensure high concentricity
• Left and rigth rotation allows thread cutting

Standard accessories Bernardo milling machine UWF 90

• 3-axis digital readout ES-12 H with LCD-display
• Drawbar M 16
• LED machine light
• Coolant device
• Automatic table feed in x- and y-axis
• Positioning motor for  z-axis
• Adapter ISO 40 / B 18, ISO 40 / MT 3
• Morse taper drill sleeve MT 3/2
• Long milling arbor 27 mm
• Horizontal counter ball bearings
• Adjustable protective device
• Protective cover for horizontal milling
• Tools

Technical specifications Bernardo milling machine UWF 90

Table size	1120 x 280 mm
Spindle taper	ISO 40
Spindle speed vertical	(8) 115 - 1750 rpm
Spindle speed horizontal	(12) 40 - 1300 rpm
Spindle stroke	125 mm
Travel longitudinal (x)	610 mm *
Travel cross (y)	240 mm
Travel vertical (z)	300 mm
Distance spindle to table	35 - 350 mm
Distance spindle to column	170 - 750 mm
Table tiltable	-45° to +45°
Spindle head tilting range	-90° to +90°
Feed range longitudinal	(8) 32 - 700 mm/min
Rapid feed z-axis	660 mm/min
T-slot size	14 mm
Motor power vertical	0,85 / 1,5 kW
Motor power horizontal	2,2 kW
Machine dimensions (W x D x H)	1750 x 1500 x 2200 mm
Weight approx.	1350 kg
