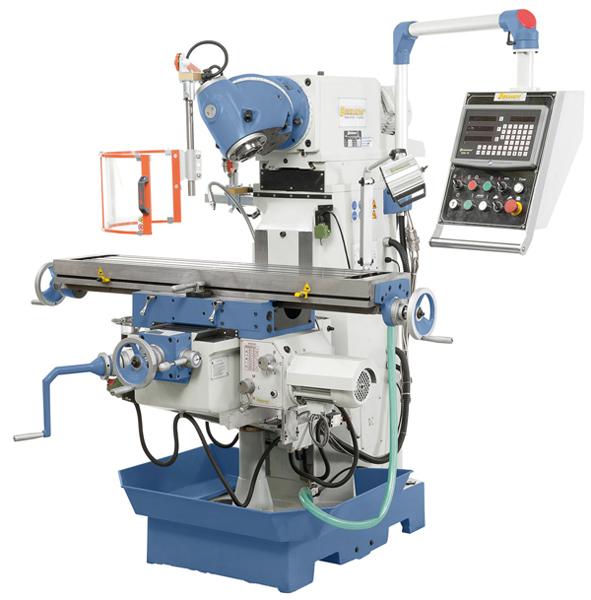

The UWF 110 universal milling machine is designed for light to medium-heavy milling work. This machine, with its high variety and the ability to easily refit, is for small and medium-sized series in workshops.
Features Bernardo milling machine UWF 110
- Universal mill head can be set to various angles
- Ergonomically mounted switches on swivelling control panel
- Solid, grey cast-iron machine construction eliminates vibrations
- Dovetail guiding with adjustable gibs in all three axis
- Polished gears, in oil bath, guarantee smooth running
- Complete with positioning motor for z-axis
- Automatic table feed in x- and y-axis comes standard
- Surface treated table features T-slots
- Digital readout for x-, y- and z-axis come standard
Standard accessories Bernardo milling machine UWF 110
- 3-axis digital readout ES-12 H with LCD-display
- LED machine light
- Coolant device
- Central lubrication
- Counter bearing
- Long milling arbor 32 mm
- Power feed for x- and y-axis
- Positioning motor for z-axis
- Coolant tray
- Adjustable protective cover
- Tools
Technical specifications Bernardo milling machine UWF 110
|
Table size |
1270 x 260 mm |
|
T-slot size |
14 mm |
|
Spindle taper |
ISO 40 |
|
Spindle speeds |
45 - 1660 rpm |
|
Steps |
11 |
|
Mill head tiltable |
360° |
|
Travel longitudinal (x) |
750 mm |
|
Travel cross (y) |
250 mm |
|
Travel vertical (z) |
400 mm |
|
Distance spindle to table |
175 - 520 mm |
|
Distance spindle to column |
0 - 550 mm |
|
Feed range longitudinal / cross |
(9) 24 - 402 mm/min |
|
Rapid feed z-axis |
660 mm/min |
|
Motor power |
2,2 kW |
|
Machine dimension (W x D x H) |
1715 x 1470 x 1660 mm |
|
Weight approx. |
1400 kg |
