Bernardo milling machine drilling machine KF 16 L Vario

Mobile Preview: Bernardo milling machine drilling machine KF 16 L Vario

Description

Description

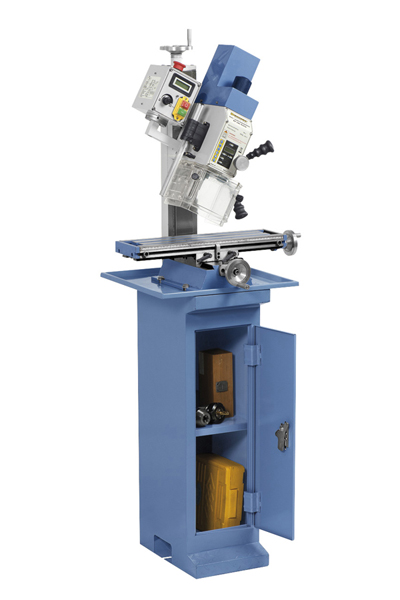

The KF 16 L Vario is a small and compact drilling machine, featuring a digital speed and spindle stroke diplay. This modell is widely used among precision mechanics and technically-minded model makers.

Features Bernardo milling machine drilling machine KF 16 L Vario

Solid grey cast-iron machine base reduces vibrations
Direct current motor ensures optimal torque at low speed range
Adjustable dovetail guiding in x-, y and z-axis
Steplessly adjustable speed range (50 - 1125 / 100 - 2250 rpm)
Mill head tilts to both sides (-90° to +90°)
Polished gear wheels ensure smooth running
Handwheel allows precise spindle feed when milling
Wide range of applications, such as tapping, slot and end milling

Standard accessories Bernardo milling machine drilling machine KF 16 L Vario

Drawbar M 10

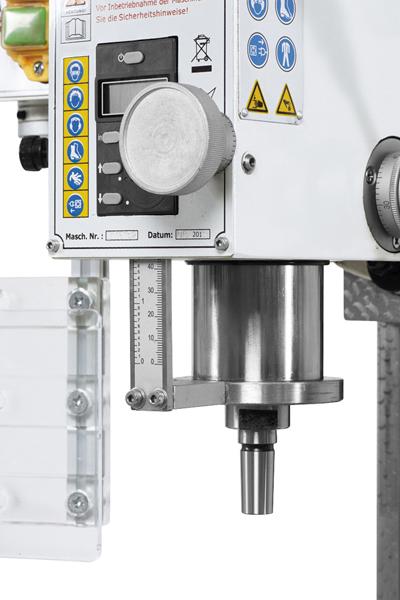

Digital display of spindle stroke
Digital speed indication
Drill chuck arbor MT 2 / B 16
EMC filter according to CE standard
Height adjustable protective cover
Tools

Technical specifications Bernardo milling machine drilling machine KF 16 L Vario

Drilling capacity in steel	16 mm
Face mill capacity max.	50 mm
End mill capacity max.	16 mm
Distance spindle to column	170 mm
Distance spindle to table	275 mm
Spindle stroke	50 mm
Spindle speed, stepless	50 - 1125 / 100 - 2250 rpm
Spindle taper	MT 2
Table size	500 x 140 mm
Travel (x / y)	365 / 140 mm
Mill head tiltable	-90° to +90°
Height adjustment mill head	200 mm
T-slot size	10 mm
Motor power output S₁ 100%	0,50 kW / 230 V
Motor power input S₆ 40%	0,80 kW / 230 V
Machine dimensions (W x D x H)*	610 x 500 x 820 mm
Weight approx.	65 kg
