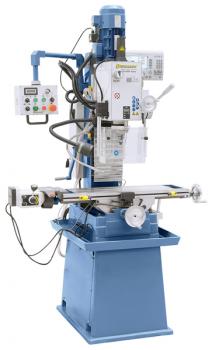

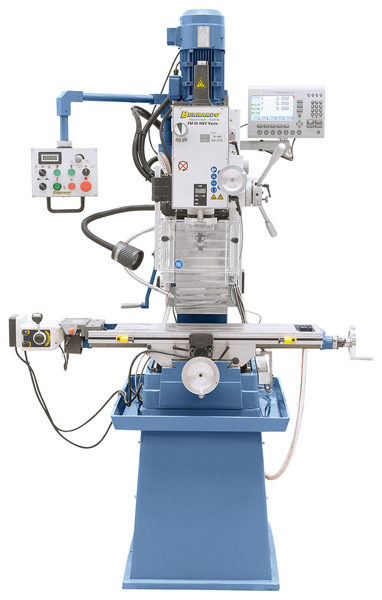

Features Bernardo milling machine drilling machine FM 55 HSV Vario incl. 3-axis digital display
- Delta- frequency inverter ensures variable speed adjustment with optimal torque
- Wide range of applications, such as slotting, face milling, circular milling etc.
- Automatic table feed with rapid feed allows quick table adjustment in x-axis
- Automatic spindle feed and thread cutting device come standard
- Dovetail guiding in x-, y- and z-axis, adjustable by gibs
- Mill head tilts to both sides for angular boring, groove milling and many more
- Digital display for speed and spindle stroke comes standard
- Solid, grey cast-iron machine stand eliminates vibrations
- Powerful coolant device included in machine base
Standard accessories Bernardo milling machine drilling machine FM 55 HSV Vario incl. 3-axis digital display
- 3-axis digital readout i200 with LCD-Display
- Keyless drill chuck 3 – 16 mm / B 16
- Morse taper drill sleeve MT 4 – B 16
- Drawbar M 16
- Morse taper drill sleeve MT 4 / 3
- Taper shell end mill holder MT 4 / 27 mm
- Automatic spindle feed
- Height adjustable protective cover
- Lifting motor for mill head
- Central lubrication
- x-axis power feed AL 450 D
- Frequency inverter Delta VFD-E
- LED machine light
- Digital speed indication
- Digital spindle stroke indication
- Thread cutting device
- Steel cover
- Coolant device
- Longitudinal scale
- Cast iron stand with coolant groove
- Tools
Technical data Bernardo milling machine drilling machine FM 55 HSV Vario incl. 3-axis digital display
|
Drilling capacity in steel |
32 mm |
|
Drilling capacity in cast iron |
40 mm |
|
Milling head max. |
80 mm |
|
Distance spindle to column |
220 mm |
|
Spindle speed, stepless |
75 – 480 / 425 – 2750 rpm |
|
Spindle taper |
MT 4 |
|
Spindle stroke |
125 mm |
|
Spindle feed |
(3) 0,10 / 0,18 / 0,26 mm/rev. |
|
Table size |
800 x 240 mm |
|
Travel (x / y) |
420 / 200 mm |
|
Mill head tiltable |
-60° to +60° |
|
Distance spindle to table |
95 - 485 mm |
|
Height adjustment of mill head |
390 mm |
|
T-slot size |
14 mm |
|
Lifting motor |
90 W |
|
Motor power output S1 100% |
1,5 kW (400 V) |
|
Motor power input S6 40% |
2,2 kW (400 V) |
|
Machine dimension (W x D x H) |
1270 x 960 x 2120 mm |
|
Weight approx. |
445 kg |
