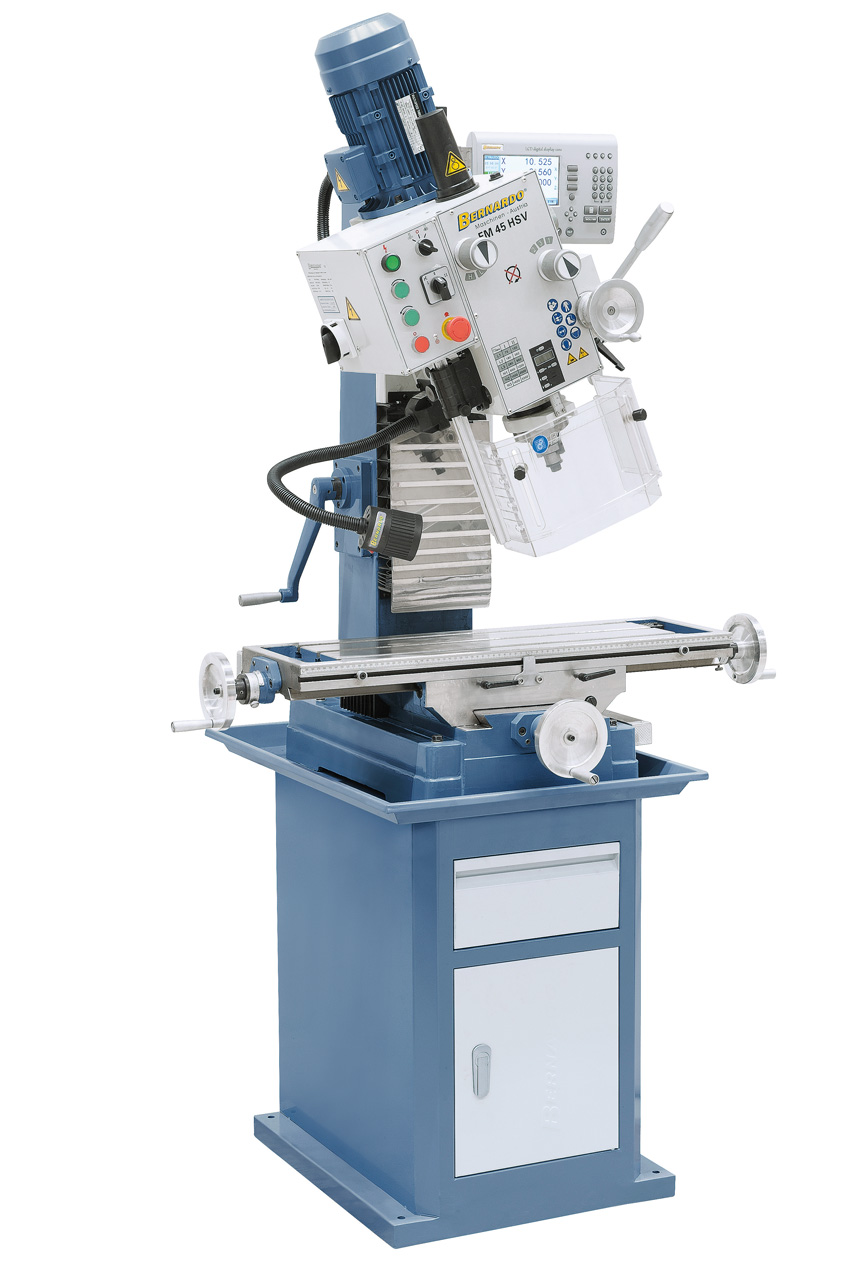

Features Bernardo milling machine drilling machine FM 45 HSV incl. 3-axis digital display
- Powerful 2-step motor, speed range 75 - 3200 rpm
- Mill head tilts to both sides for angular boring, milling of bevels etc.
- Height adjustable protective cover with micro switch for increased safety
- Automatic spindle feed and thread cutting device come standard

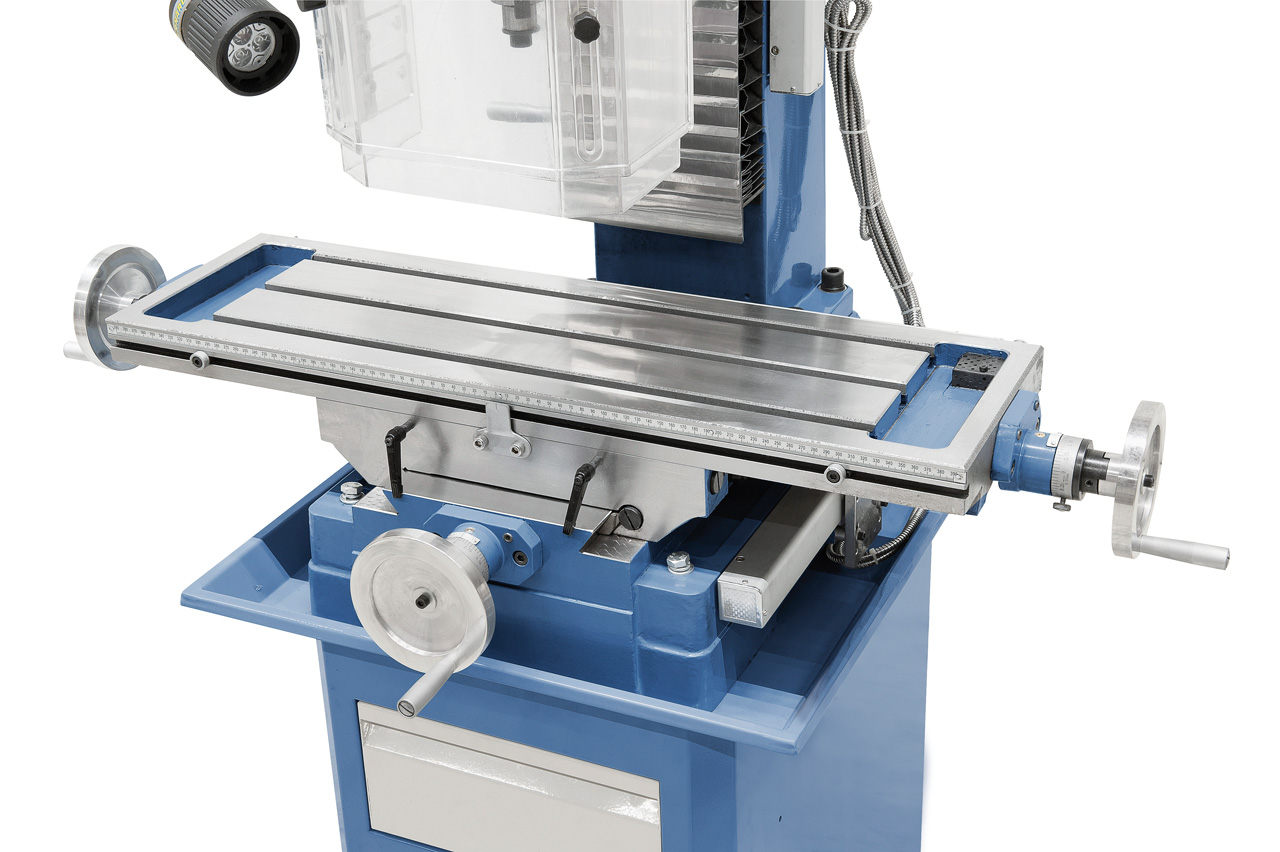

- Dovetail guiding in x- and y-axis, adjustable by gibs
- Gear selector switch allows quick and easy speed change
- Digital display for spindle feed included
- Dovetail guiding of gear head maximizes stability
- Handle for spindle adjustment, handwheel for fine feed
- Solid cast-iron construction eliminates most vibrations
Standard accessories Bernardo milling machine drilling machine FM 45 HSV incl. 3-axis digital display
- 3-axis digital readout i200 with LCD-display
- Keyless drill chuck 3 – 16 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Drawbar M 16
- Morse taper drill sleeve MT 4/3
- Taper shell end mill holder MT 4 / 27 mm
- Height adjustable protective cover
- Automatic spindle feed
- LED machine light
- Digital spindle stroke indication
- Thread cutting device
- Steel cover
- Longitudinal scale
- Tools
Technical specifications Bernardo milling machine drilling machine FM 45 HSV incl. 3-axis digital display
|
Drilling capacity in steel |
32 mm |
|
Drilling capacity in cast iron |
40 mm |
|
Milling head max. |
80 mm |
|
Distance spindle to column |
220 mm |
|
Spindle speeds |
(12) 75 – 3200 rpm |
|
Spindle taper |
MT 4 |
|
Spindle stroke |
120 mm |
|
Spindle feed |
(3) 0,10 / 0,18 / 0,26 mm/rev. |
|
Table size |
800 x 240 mm |
|
Travel (x / y) |
555 / 205 mm |
|
Mill head tiltable |
-60° to +60° |
|
Distance spindle to table |
60 – 485 mm |
|
Height adjustment of mill head |
425 mm |
|
T-slot size |
14 mm |
|
Motor power output S1 100% |
1,1 / 1,5 kW (400 V) |
|
Motor power input S6 40% |
1,5 / 2,2 kW (400 V) |
|
Machine dimension (W x D x H)* |
1140 x 770 x 1500 |
|
Weight approx. |
308 kg |
without stand
