The model FM 45 eco is a cost-effective drilling and milling machine. The dovetail guide of the gear head ensures maximum precision and stability. This model is mainly used by do-it-yourselfers.
Features Bernardo Milling Machine - Drilling Machine FM 45 eco
- Simple and fast speed change by means of gear selector switch
- Versatile application possibilities such as drilling, milling, thread cutting,...
- Smooth running due to ground gear wheels running in an oil bath
- Right-hand and left-hand rotation for thread cutting

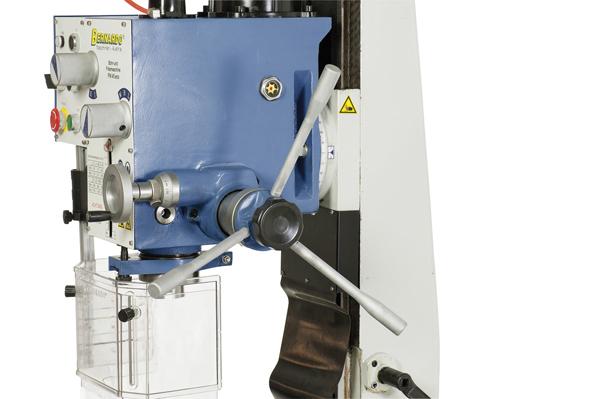

- Spindle sleeve adjustment by means of a handle, fine adjustment by means of a handwheel
- Dovetail guide for x-, y- and z-axis, adjustable via gibs
- Milling head swivelling on both sides for angle drilling, milling of chamfers, etc.
- Massive large cross table, precisely surface-machined
- Optimum price-performance ratio for the cost-conscious user
Scope of delivery Bernardo milling machine - drilling machine FM 45 eco
- Keyless drill chuck 1 - 16 mm / B 18
- Drill chuck mandrel MK 4 / B 18
- Reducing sleeve MK 4 / 3
- Tightening spindle M 10 with adapter M 16
- Cutter head 80 mm with adapter MK 4
- Tapping attachment
- Height-adjustable protective cover
- Longitudinal measuring scale
- Operating tool
Technical Data Bernardo Milling Machine - Drilling Machine FM 45 eco
|
Drilling power in steel
|
32 mm
|
|
Drilling power in cast iron
|
40 mm
|
|
Outreach
|
260 mm
|
|
Spindle speed
|
(6) 95 - 1600 rpm
|
|
Spindle mount
|
MK 4
|
|
Quill stroke
|
120 mm
|
|
Table size
|
730 x 210 mm
|
|
Travel (x / y)
|
490 / 205 mm
|
|
Milling head swivelling
|
-90° bis +90°
|
|
Distance spindle / table
|
55 - 495 mm
|
|
Height adjustment milling head
|
440 mm
|
|
T-slot size
|
14 mm
|
|
Motor output power S1 100%
|
1,1 kW / 400 V
|
|
Motor input power S6 40%
|
1,5 kW / 400 V
|
|
Machine dimension (W x D x H)*
|
1080 x 800 x 1380 mm
|
|
Weight approx.
|
260 kg
|
* without underframe
