Bernardo Milling Machine - Drilling Machine BF 40

• Versatile application possibilities such as drilling, milling, thread cutting, ...

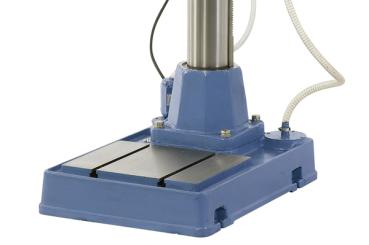

• Machined machine base for clamping particularly high workpieces
• 2-step motor with 12 switchable speeds
• Right-left rotation for thread cutting

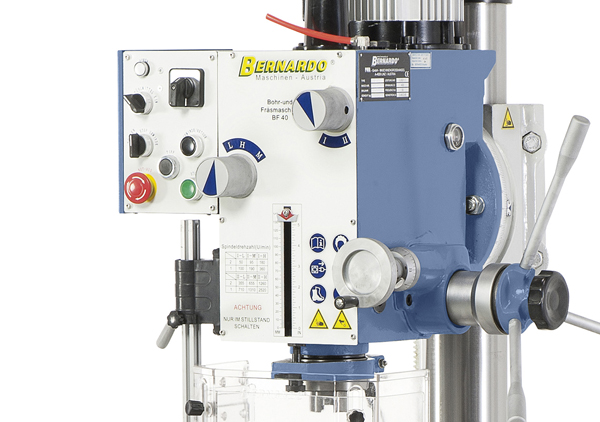

• Easy and quick speed change by means of gear selector switch
• Gear head can be swivelled 180°, rotated 360° and adjusted in height
• Smooth running due to ground gear wheels running in an oil bath
• Spindle sleeve adjustment by means of a handle, fine adjustment by means of a handwheel

Scope of delivery Bernardo milling machine - drilling machine BF 40​

• Keyless drill chuck 1 - 16 mm / B 18
• Drill chuck mandrel MK 4 / B18
• Reducing bushing MK 4 / 3
• Cutter head 80 mm
• Height adjustable protective cover
• Tapping device
• Tightening spindle M16
• Coolant device
• Longitudinal measuring scale
• Operating tool

Available special accessories Bernardo milling machine - drilling machine BF 40​

• Reducing bushing MK 4 / 2 (Art.No.:24-1024)
• Reducing bush MK 4 / 3 (Art.No.:24-1025)
• Tapping attachment MK 4, M 3 - M 12 (Art.No.:24-1091)
• Cutter collet chuck set ER 40, MK 4, 3 - 25 mm, 16 pcs. (Art.No.:26-1007)
• Horizontal and vertical rotary table HV 6 (Art.No.:27-1000)
• Semi-universal dividing head BS-0 (Art.No.:27-1045)
• Clamping tool assortment 58 pcs, 14 mm, M 12 (Art.No.:28-1001)
• Industrial drilling machine vice BMI 125 (Art.No.:28-2016)
• Quick-action drill machine vice BMS 100 QC (Art.No.:28-2021)
• Machine vice KV 125 (Art.No.:28-2081)
• Wide clamping machine vice FJ 125 (Art.No.:28-2086)
• Digital depth gauge 0 - 100 mm / 0,001 mm (Art.No.:31-1070)
• Edge finder 5-pcs. (Art.No.:32-1067)
• 2D precision centring device (Art.No.:32-1070)
• Parallel pad set 28 pcs. (Art.No.:35-1020)
• Set of end mills HSS TiN-coated, 6 - 25 mm, 10-pcs (Art.No.:42-1016)
• Set of end mills TiN-coated, 3 - 20 mm, 20-pcs. (Art.No.:42-1020)
• LED - machine light LED 2 / 24 V with flexible arm (Art.No.:52-1019)
• Machine shoe MS 80 (Art.No.:53-2000)
• Bernardo drilling milk DRILL, 1:20 dilutable, in 5 l canister (Art.No.:54-1200)

Technical Data Bernardo Milling Machine - Drilling Machine BF 40​
