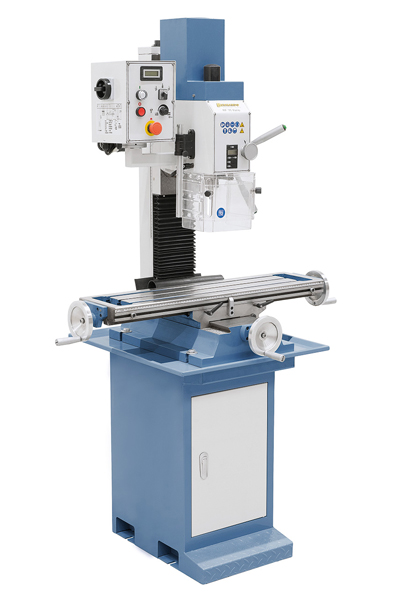

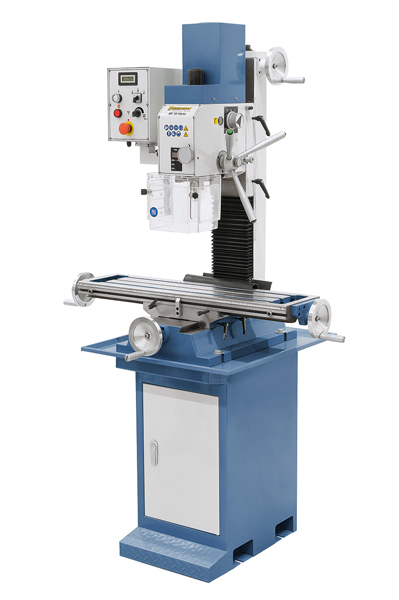

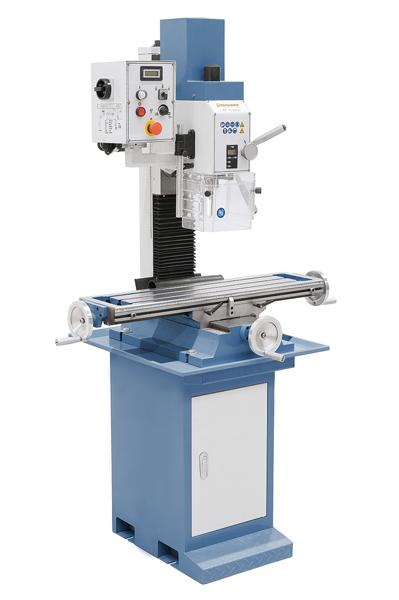

Features Bernardo milling machine drilling machine BF 35 Vario
- High speed range (100 – 3000 rpm), 2-step gearbox ensures optimal transmission
- Variable speed adjustment, stepless speed change for ideal adjustment to the workpiece
- Large range of applications, such as tapping, slotting, groove milling and many more
- Dovetail guiding in x-, y- and z-axis, adjustable by gibs
- Precision bearings ensure high spindle concentricity (≤ 0.015 mm)
- Incl. EMC filter, protect electrical equipment against electromagnetic interferences

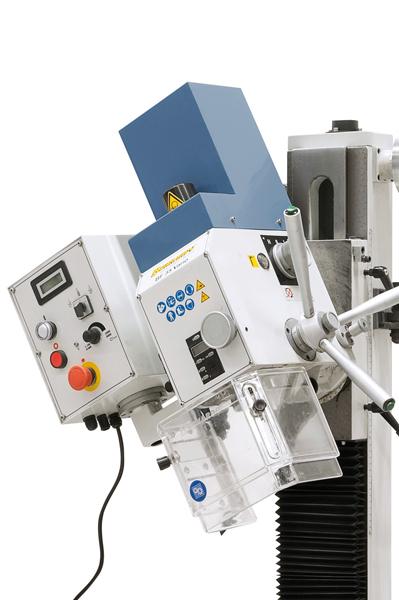

- Milling head tilts to both sides to allow angle boring, milling of chamfers etc.
- Gear wheels saturated in oil allow for smooth operation
- Spindle adjustment via handle, fine feed via handwheel
Standard accessories Bernardo milling machine drilling machine BF 35 Vario
- Drill chuck arbor MT 3 / B 16
- Keyless drill chuck 3 - 16 mm / B 16
- Drawbar M 12
- Digital speed indicatore
- Digital spindle stroke indicator
- Thread cutting device
- EMC filter according to CE standard

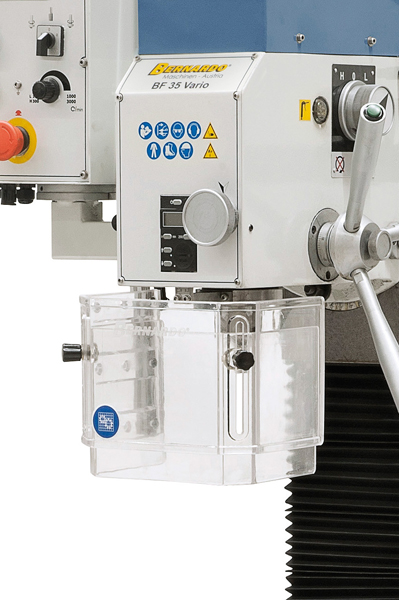

- Height adjustable protective cover
- Tools
Technical specifications Bernardo milling machine drilling machine BF 35 Vario
|
Drilling capacity in cast iron |
35 mm |
|
Drilling capacity in steel |
30 mm |
|
Face mill capacity max. |
75 mm |
|
End mill capacity max. |
25 mm |
|
Thread cutting max. |
M 20 |
|
Distance spindle to column |
180 mm |
|
Distance spindle to table |
120 - 470 mm |
|
Spindle stroke |
75 mm |
|
Spindle speed, stepless |
100 - 1000 / 300 - 3000 rpm |
|
Spindle taper |
MT 3 |
|
Table size |
840 x 210 mm |
|
Travel (x / y) |
565 / 215 mm |
|
Mill head tilting range |
-90° to +90° |
|
Height adjustment of mill head |
350 mm |
|
T-slot size |
14 mm |
|
Motor power output S1 100% |
1,5 kW / 230 V |
|
Motor power input S6 40% |
2,2 kW / 230 V |
|
Machine dimension (W x D x H)* |
1300 x 715 x 1200 mm |
|
Weight approx. |
277 kg |
|
without stand |
|
