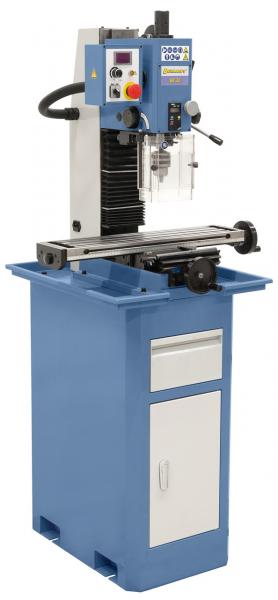

The basic version of the BF 22 drilling and milling machine is already equipped with a digital speed and quill stroke display. This machine is used by professional users, in model making and in training.
Features Bernardo Milling Machine - Drilling Machine BF 22
- Variable speed setting, speed can be infinitely adjusted to the workpiece
- Versatile application possibilities, e.g. tapping, groove milling, slot milling, ...
- With right/left-hand rotation device and digital quill stroke display as standard
- Dovetail guide for x-, y- and z-axis, adjustable via wedge bars
- High concentricity of the quill due to taper roller bearings (≤ 0.015 mm)
- Ergonomically positioned switching and operating elements
- Precise quill adjustment during milling by means of handwheel
- Smooth running due to ground gear wheels
- Wide speed range (2 steps) from 100 - 2000 rpm
Scope of delivery Bernardo milling machine - drilling machine BF 22
- Gear rim drill chuck 1 - 13 mm / B 16
- Drill chuck mandrel MK 3 / B 16
- Tightening spindle M 12
- Digital speed display
- Digital drilling depth display
- Height-adjustable protective cover
- Operating tool
Available special accessories Bernardo milling machine - drilling machine BF 22
- Milling table feed FTV 4 / 230 V (Art. No. 53-1016)
- Cutter collet chuck set ER 25, MK 3, 3 - 16 mm, 10 pcs. (Art. No. 26-1003A)
- Cutter collet chuck set ER 40, MK 3, 3 - 25 mm, 16 pcs. (art. no. 26-1006)
- Clamping tool assortment 58 pcs, 12 mm / M 10 (Art. No. 28-1000)
- Horizontal and vertical rotary table RT 4 S (Art. No. 27-1034)
- Swivelling angle table 230 x 120 mm (Art. No. 27-1079)
- Shank roughing cutter TiN-coated, 6 - 25 mm, 10 pcs. (art. no. 42-1016)
- TITAN cutter cassette 3 - 20 mm, 20 pcs. (art. no. 42-1020)
- Precision machine vice PS 75 (Art. No. 28-2026)
- Two-axis precision machine vice PTS 75 (Art. No. 28-2032)
- Machine vice KV 100 (Art. No. 28-2080)
- Tapping attachment Super M 5 - M 12 (Art. No. 24-1096)
- Face and boring head set diam. 50 mm, incl. boring bars (Art. No. 25-1015)
- Edge finder diam. 10 mm / 4 mm (Art. No. 32-1066)

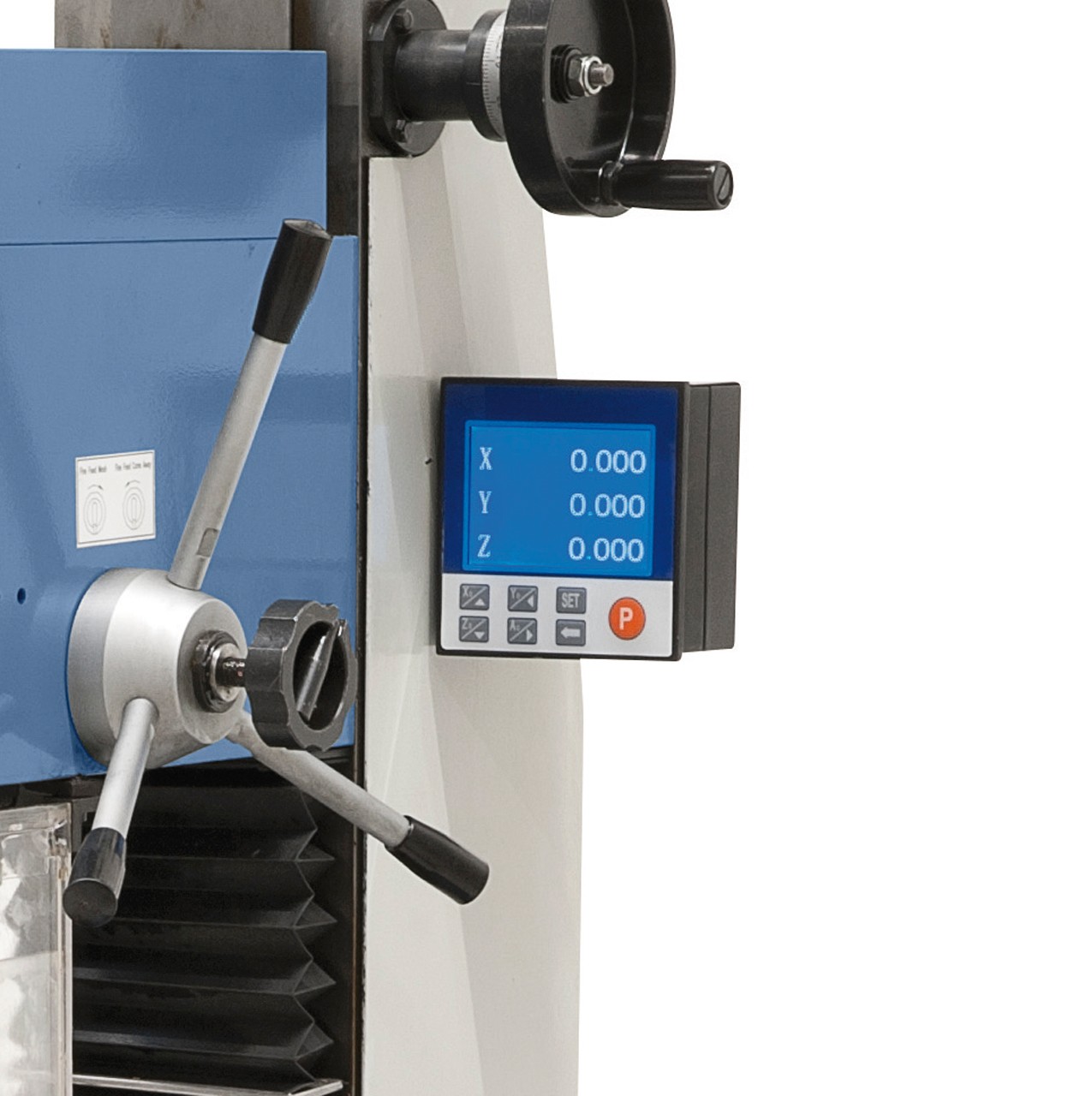

- 3-axis position indicator set for BF 22 (Art. No. 37-3246)
- 3-axis position indicator set for BF 22 L Super (art. no. 37-3247)
- Factory assembly for 3-axis position indicator set (Art. No. 37-3083)
- Underframe Deluxe (Art. No. 56-1031)
Technical Data Bernardo Milling Machine - Drilling Machine BF 22
|
Drilling power in steel
|
20 mm
|
|
Face milling cutter max.
|
50 mm
|
|
End mill max.
|
16 mm
|
|
Thread cutting max.
|
M 12
|
|
Outreach
|
165 mm
|
|
Distance spindle/table min./max.
|
105 - 370 mm
|
|
Quill stroke
|
70 mm
|
|
Spindle speed, infinitely variable
|
100 - 2000 rpm
|
|
Spindle mount
|
MK 3
|
|
Table size
|
595 x 140 mm
|
|
Travel (x / y)
|
390 / 185 mm
|
|
Height adjustment milling head
|
265 mm
|
|
T-slot size
|
12 mm
|
|
Motor output power S1 100%
|
0,75 kW / 230 V
|
|
Motor input power S6 40%
|
1,1 kW / 230 V
|
|
Machine dimension (W x D x H)*
|
730 x 610 x 760 mm
|
|
Weight approx.
|
90 kg
|
* without underframe
