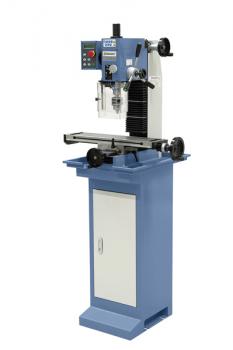

The BF 18 Super drilling and milling machine is already equipped with a digital speed and quill stroke display in the basic version. The model is equipped with a brushless DC motor and a thread cutting device. This machine is used by professional users, in model making and in training.
Features Bernardo Milling Machine - Drilling Machine BF 18 Super - 230 V
- Variable speed adjustment, speed can be infinitely adjusted to the workpiece
- DC motor for optimum torque in the lower speed range
- Versatile application possibilities, e.g. tapping, groove milling, slot milling, ...
- Right-left rotation and digital spindle sleeve stroke indicator as standard
- Dovetail guide for x-, y- and z-axis, adjustable via wedge bars
- High concentricity of the quill due to taper roller bearings (≤ 0.015 mm)
- With thread-cutting device as standard
- Ergonomically positioned switching and operating elements

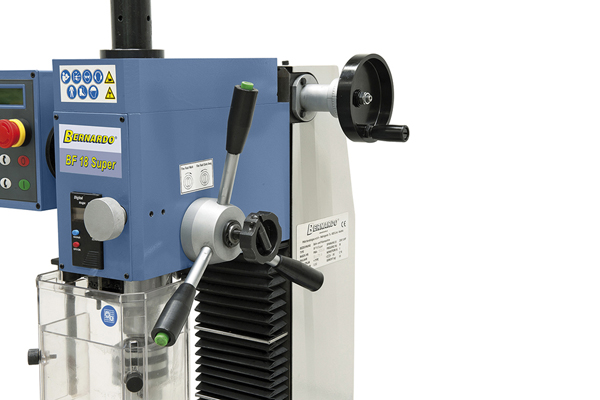

- Precise quill adjustment during milling by means of handwheel
- High running smoothness due to ground gearwheels
- Wide speed range (2 steps) from 100 - 2500 rpm
Scope of delivery Bernardo milling machine - drilling machine BF 18 Super - 230 V
- Gear rim drill chuck 1 - 13 mm / B 16
- Drill chuck mandrel MK 3 / B 16
- Tightening spindle M 12
- Digital speed display
- Digital drilling depth display
- Height-adjustable protective cover
- Tapping device
- Operating tool
Technical data Bernardo Milling Machine - Drilling Machine BF 18 Super - 230 V
|
Drilling power in steel max.
|
18 mm
|
|
Face milling cutter max.
|
50 mm
|
|
End mill max.
|
16 mm
|
|
Thread cutting max.
|
M 12
|
|
Outreach
|
150 mm
|
|
Distance spindle/table min./max.
|
90 - 260 mm
|
|
Quill stroke
|
45 mm
|
|
Spindle speed, infinitely variable
|
100 - 2500 rpm
|
|
Spindle mount
|
MK 3
|
|
Table size
|
550 x 130 mm
|
|
Travel (x / y)
|
365 / 180 mm
|
|
Height adjustment milling head
|
170 mm
|
|
T-slot size
|
12 mm
|
|
Motor output power S1 100%
|
0,50 kW / 230 V
|
|
Motor input power S6 40%
|
0,75 kW / 230 V
|
|
Machine dimension (W x D x H)*
|
750 x 600 x 770 mm
|
|
Weight approx.
|
83 kg
|
* without underframe
