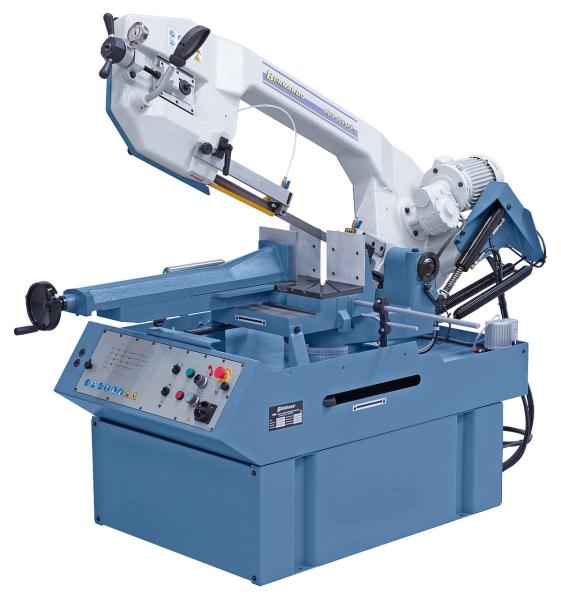

Bernardo MBS 530 DG horizontal bandsaw

Product No.:
04-1713
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
555 kg per piece
9.208,06 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Features Bernardo MBS 530 DG horizontal bandsaw​

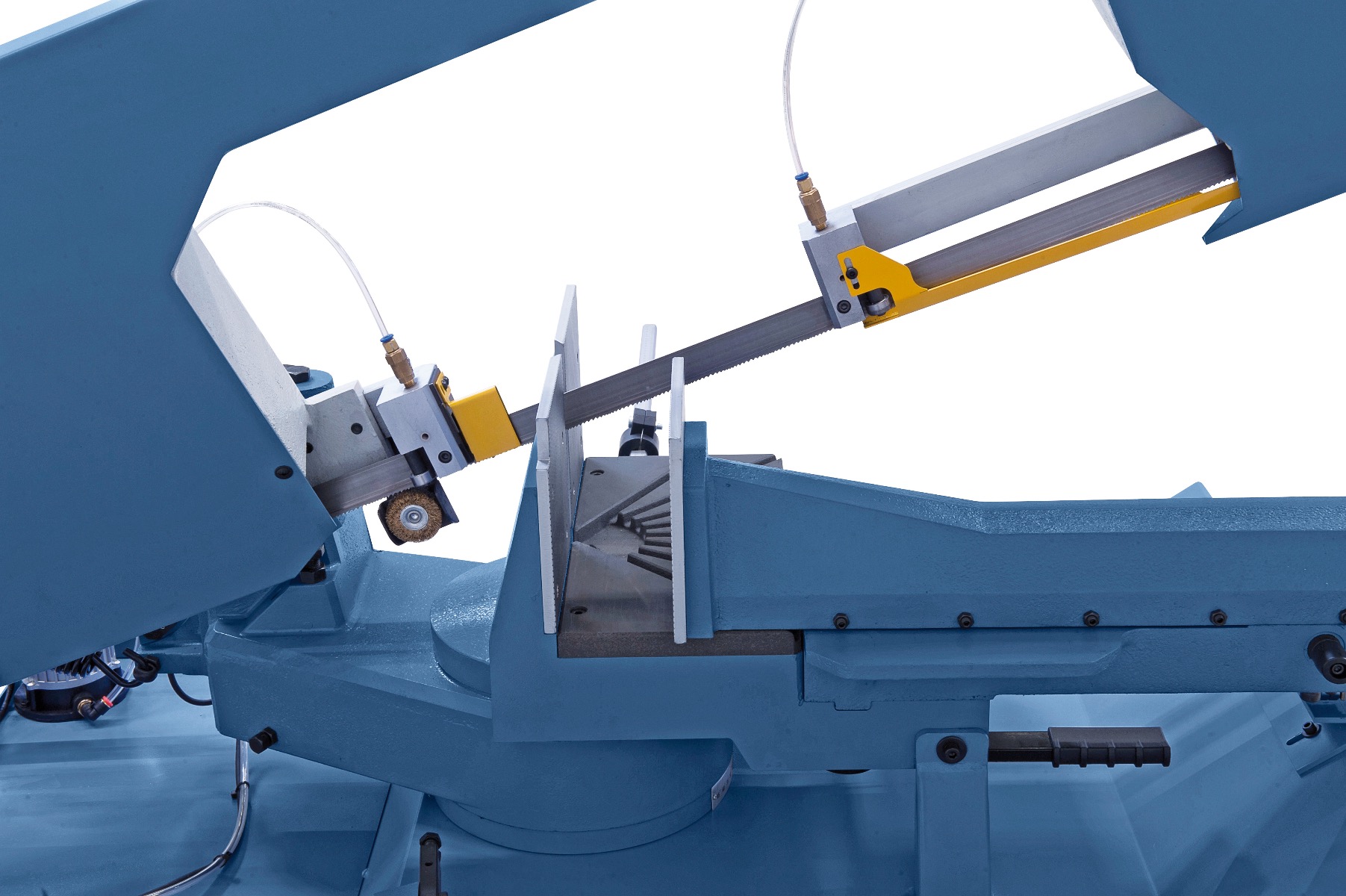

  • Saw blade guide via combined roller-jaw guide system with carbide inserts
  • Swivel saw bow for double mitre cutting to the left (-45°) and right (+60°)
  • 2 saw band speeds (35 / 70 m/min) for optimum cutting results
  • Robust construction, therefore quiet and vibration-free running
  • Professional band saw with good price-performance ratio
  • Optimum power transmission to the impeller by means of hardened and ground worm shaft and bronze worm wheel
  • Adjustable hydraulic cylinder to regulate the support pressure of the saw bow

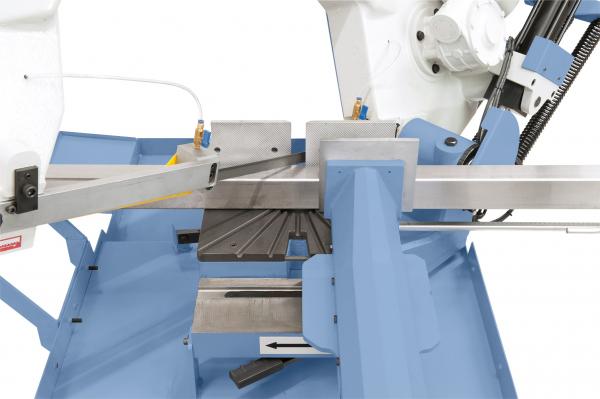

  • Robust vice made of grey cast iron with workpiece stop, ideal for series cuts
  • For cutting profiles, tubes, solid materials of iron and non-ferrous materials
Scope of delivery​
  • Saw blade
  • Workpiece stop
  • Undercarriage

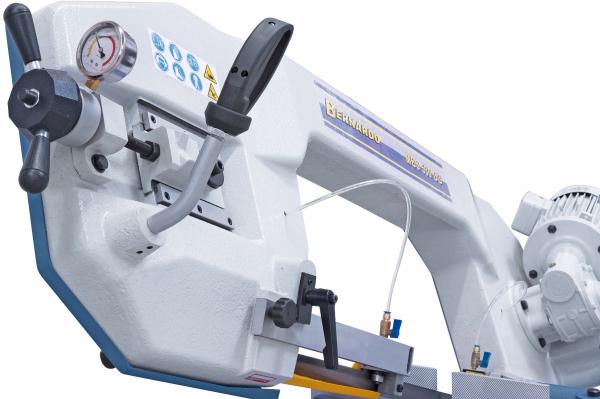

  • Pressure gauge for belt tension
  • Saw blade guide with carbide inserts
  • Quick clamping vice
  • Coolant system
  • Hydraulic lowering cylinder
  • Motor protection switch
  • Automatic limit switching

Technical data Bernardo MBS 530 DG horizontal bandsaw​

Cutting range round / square 90°

355 mm / 280 x 280 mm

Cutting range flat 90°

490 x 280 mm

Cutting range round / square 45° R

355 mm / 280 x 280 mm

Cutting range flat 45° R

340 x 280 mm

Cutting range round / square 45° L

300 mm / 270 x 270 mm

Cutting range flat 45° L

250 x 250 mm

Cutting range round / square 60° R

230 mm / 180 x 180 mm

Working height

870 mm

Saw blade dimensions

3770 x 34 x 1,1 mm

Cutting speeds

35 / 70 m/min

Coolant pump

100 W

Motor output power S1 100%

1,9 kW

Motor input power S6 40%

2,8 kW

Voltage

400 V

Machine dimensions (L x D x H)

2200 x 1400 x 1500 mm

Weight approx.

555 kg
